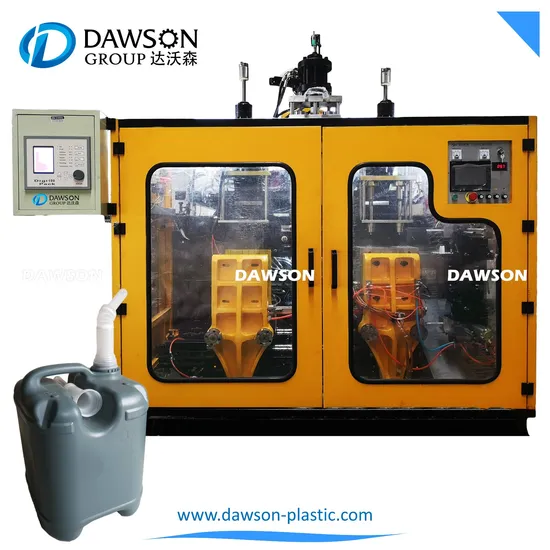

Plastic LDPE Lubricant Flexible Jerry Can Tubes Molding Machine
| US$28,500.00-32,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YK70II-2
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Application
Bottles,Jars,Cans,Gallons,Jerry Cans
Station
One Station or Two Station
Die Head
Single Head or Double Head
Auto-Deflashing
Available
Mould
One Cavity or Two Cavity
Made in
China
Suitable
0-5L
Material
HDPE,PP,PVC,LDPE
Color
Available
Max Volume
5L
Electromagnetic Valve
Taiwan Airtac
Cooling Medium
Water
Water Flow
100L/Min
Water Pressure
0.4-0.6MPa
Air Pressure
0.6~0.8MPa
Transport Package
Nude Package/as Customers Request
Specification
YK70II-2
Trademark
DAWSON
Origin
Zhangjiagang Jiangsu
HS Code
8477301000
Production Capacity
as Per Samples
Packaging & Delivery
Package Size
1100.00cm * 700.00cm * 700.00cm
Package Gross Weight
25000.000kg
Product Description
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
Automatic Extrusion Blow Molding Machine YK70II-2
Blow Molding Machine suitable for making 0~2L bottles
Technical Parameters Product: 0~2L small bottles / LDPE jerry can flexiable nozzles
Power supply: 380/220v 50/60 Hz Tri-phase
Layer: Single layer
Parison control: MOOG 100 points
| Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on | |
| Max volume | 2 L / 5L | ||
| Output capacity | as per samples | ||
| Size | 4.4×3.4×3.6(M) | ||
| Weight | 11.3T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | |||
| Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | ||
| Reducer | Hard finishing,High intension,Low noise reducer | ||
| Screw 1 | ∮70mm,L/D ratio 25,130kg/h 38CrMoALA | Cooling system available | |
| Heating Zone | 4 Aluminum Heater | Automatic heating | |
| Heating power | 10KW/H | ||
| Cooling Fan | Separate cooling system for heaters | Automatic cooling | |
| Extrusion system | |||
| Summarize | High-grade alloy steel, center feeding | ||
| Die head number | 1 | ||
| Center distance of die heads | / | ||
| Max die mouth | 200 | ||
| Extruder Motor | 30kw SIEMENS MOTOR | ||
| Clamping system | |||
| Summarize | High intension, rigidity, center mold locking, stable mould opening and advanced clamping system | ||
| Clamping force | 270 KN | ||
| Distance between platens | 450~950mm | ||
| Mould template | 680× 660 | ||
| Mould material | S50C/Aluminium with beryllium copper |
| Electricystem | |||
| Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | | |
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Parison control | MOOG 100 points controller | ||
| Temperature control | Automatic temperature control module | ||
| Movement control | TECH-2/Mitsubishi, Chinese/English Version | ||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| TOTAL rated power | 67kw | ||
| Average power consumption | 33 kw | ||
| Inverter | Delta | ||
| Hydraulic system | |||
| Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | ||
| Oil pump motor | 11kw motor (380V/220V,50/60HZ) | ||
| Oil pump | double vane pump | ||
| Valves | Imported oil pump valves and connections YUKEN | ||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | LP 100 bar / HP 130 bar Threads of hydraulic block use of screw joint GE(ISO 1179) | ||
| Cooling system | Post cooling by cooling air and cooling water with Aluminum Mask | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 0.6~0.8Mpa | ||
| Air displacement | 2.2 M3/min | ||
| Electromagnetic valve | Taiwan AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 100L/min | ||
| Water pressure | 0.4-0.6MPa | ||
1.Hydraulic system and valves connections from Japanese Yuken industry.
2.Computer control system (PLC) Japanese Mitisubishi PLC Used to control all electrial components and touch screen
3.Auto-deflashing Unit
Remove extra parts of products automatically
Saving your labor cost
4.Electric Cabinet All electric components
From famous world brand to ensure the quality and stability
5.Touch screen Chinese and English
(or other language)
All movement operated
By touch screen
Make the process full-automatic
Machine's color can be customized according to your needs.
