Electric Soil Density Gauge for soil

Product Description

Product Description

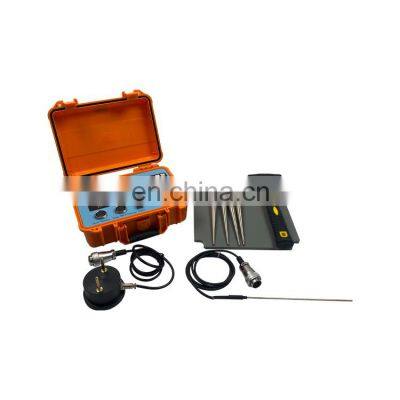

Non-nuclear Soil Density GaugeProduct DescriptionThe LOVELY-4114 Non-nuclear soil density gauge (EDG) accurately measures soil density, moisture content and compaction in roads and foundations. The measurement accuracy depends mainly on the correct use of the operator, so a detailed reading of this operating manual will be available. Help you to use the product better. When making a soil model, EDG is needed to collect electronic signals at different test points (the test point of this soil model is called soil test). Each test point needs to collect an electronic signal. At the same time, sand cone test is needed to obtain the physical characteristics of the soil, such as wet density, dry density and moisture content. The maximum dry density of the soil is measured in the laboratory, and then these data are input into the instrument so that the electronic data can be correlated with the physical data.ParametersEquipment nameSoil nuclear density meterSpecification modelLOVELY-4114Maximum RS-232 cable length100cmInternal power supply12V nickel-hydrogen,2000mAh capacityBattery lifeAbout 24 hoursOperating temperature range0 ~ 50℃Humidity range5% ~ 90%RHEDG controller weight8kgEDG controller size300*260*140EDG accessory weight About 3kgMain Features Some new technologies that you need to be familiar with during the operation of EDG are introduced. 1. Soil model is the combination of soil electronic data and soil physical data input by users, and it is the basis of testing soil parameters in a similar soil characteristic area.2. At least three test points (soil test) are required for soil moulding. The more test points, the more representative the soilmodel will be. Moreover, the larger the density and water content range covered by the test points, the more accurate the soil model is. 3. After the soil model is made, EDG can be used for field test. The test area is the area where the experimenter intends to test and the tested soil has the same physical characteristics. 4. A soil model is usually made for each different test area. Different projects need different soil moulids. Once the soil model representing this area is successfully made, the soil characteristics of any test point can be quickly and accurately measured byEDG through field test. 5. The actual test is to calculate the physical properties of soil by comparing the electronic data collected from the test points with the soil model.ApplicationContact USCangzhou Lovely Technology Co., Ltd is specialize in NDT Equipment and Material testing machine over 10 years,With advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?Q1:Are you a factory or trading company? A:We are a factory specializing in manufacturinf all kinds of tester. Q2:Where is the loading port?A:Qingdao port or tianjin portQ3:What’s the MOQ of the product? A:Different item has different MOQ.normally one stand is preferred. Q4:What certificates do you have? A:We have ISO 9001Q5:Do you have an OEM service? A:Yes.We can provide OEM and ODM services as your requirements.Q6:How long is the production cycle after ordering? A:General it is about 7-10 days.Q7:What is the payment method? A:T/T payment is preferred and other payment terms is accepted.
