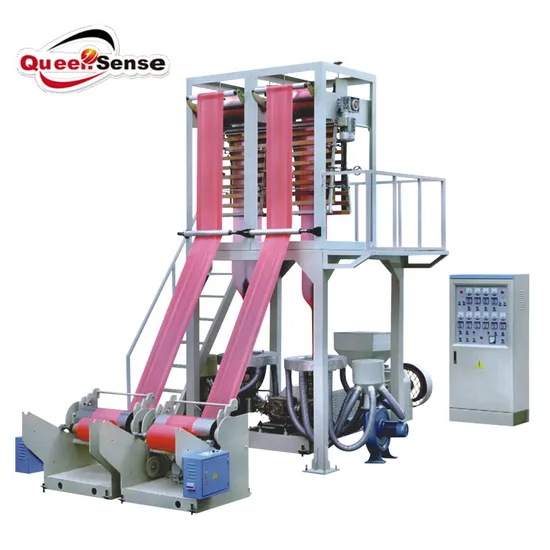

ABA Double Screws Double Head Dies Co-Extrusion High Speed Film Making Machine

Product Description

Overview
ABA co-extrusion film stretch extrusion machine
high speed extruding machine for plastic bags



Product Description

Function:
This machine set is used for blowing Low-density polyethylene (LDPE) and high- density polyethyene (HDPE) plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.

Characteristics :
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.,Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.

Main Technical Varia

Detailed Images



Extrusion Die Head

Model : QS-DH 400*2 QS-DH 500*2
Die Head Type: Die Head
Die Head Diameter:60mm*2 80mm*2
Heating Ring Material:Stainless Steel
Screen Changer :Standard Manual
Air Ring:620*2
Bubble Blower:3KW*2





Winding Unit

Model :QS-DH 400*2 QS-DH 500*2
Type of Winder:Separate single-winding
Diameter and Length
of Winding rubber roller: 270*600mm 270*700mm
Diameter and Length
of Winding shaft:3 inch
Winding Motor:1.5kw
Winding Speed:10-100m/min



Extrusion Unit

Model : QS-DH 400*2 QS-DH 500*2
Screw Diameter(mm):50×2 55×2
Screw L/D Ratio:30:1
Screw Material:Sacm-645/38 CRMOALA
Barrel Material:Sacm-645/38 CRMOALA
Heating Ring Material: Stainless Steel
Barrel Cooling Fan:250w*4
Main Motor(kw):22kw*2 30kw*2
Inverter:Paineer
Average Power-consume:40kw/h 60kw/h


Take-Up Unit

Model: QS-DH 400*2 QS-DH 500*2
Take-up Unit:1 Units
Roller Width:600mm 700mm
Take-up Motor:100m/min
Letter "A" Board:Wooden



Options


Our Services

Certifications:

Technicians:

Workshop:


All of our goods are of CE & SGS & ISO 9001 standard


Machine with one year warranty, all spare parts will be given free within one year. Engineer dispatch is possible,the buyer must assume the cost of round-trip airfare and accommodation etc. Also the salary is 90 USD/Day.
