Emergency Fire Pump Package 2500gpm Fire Fighting Pump Price

Product Description

Emergency Fire Pump Package 2500gpm Fire Fighting Pump Price

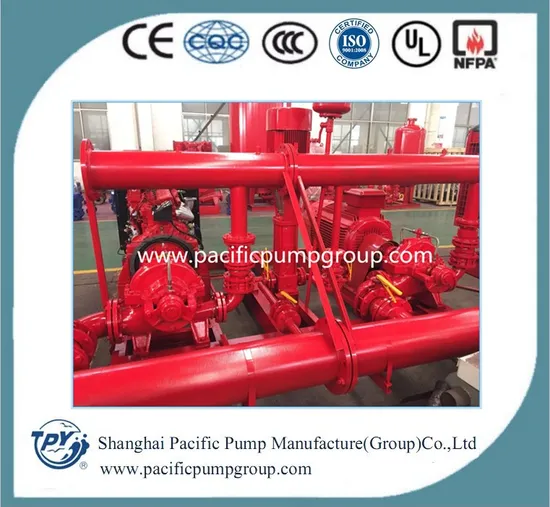

1.Product Introduction EDJ series is a packaged fire pump set,generally an automatic fire water supply system It consists of a main pump (driven by an electrical motor),stand by pump (driven by diesel engine) and a jockey pump.This model comes equipped with a separate controller,or one that is attached to the skid,The package also contains discharge valves,common header,and accessories.

2. Working Principle
Generally the pipeline network's pressure is between the low pressure P1 and the high pressure P2.When the above pressure is lower than P1,the pressure maintaining pump will start automatically and not stop until the pressure rises gradually to P2.Due to the pipeline network's leakage,its pressure will drop to P1 gradually,and then the pressure maintaining pump will start automatically again.with such a repeated process,the pipeline network's pressure is maintained between P1 and P2 all the time.when the pipeline network's pressure can't be maintained between P1 and P2 (for instance,when the water consumption increases a lot) and drops to the minimum pressure P3,the electric pump will start automatically and the pressure will rise to Pw and meet the need for fire water supply,if the mains supply is power-off or the electric pump fails,the pressure will continue to drop from P3 to the ultimate pressure P4.then the diesel pump set will start automatically,and the pressure will rise to Pw and meet the need for fire water supply.the electric or diesel pump shall be stopped manually after human judgment (except automatic switching ).
3. UL Listed Pump Models Specifications for Clients Choosing

Pump Model (Split Case Pump)	Rated Capacity (GPM)	Inelt x Outlet (INCH)	Rated Net Pressure Range (PSI)	Approx Speed (RPM)	Max Working Pressure (PSI)
SLOW80-350	300	5x3	129-221	2950	290
SLOW80-350	400	5x3	127-219	2950	290
SLOW100-400	500	6x4	225-288	2950	350
SLOW80-280(I)	500	5x3	86-153	2950	200
SLOW100-320	500	6x4	115-202	2950	230
SLOW100-400	750	6x4	221-283	2950	350
SLOW100-320	750	6x4	111-197	2950	230
SLOW125-380	750	8x5	48-71	1480	215
SLOW125-480	1000	8x5	64-84	1480	200
SLOW125-300	1000	8x5	98-144	2950	200
SLOW125-380	1000	8x5	45-69	1480	215
SLOW125-480	1250	8x5	61-79	1480	200
SLOW150-350	1250	8x6	45-65	1480	200
SLOW125-300	1250	8x5	94-141	2950	200
SLOW150-570	1250	8x6	116-145	1480	290
SLOW150-350	1500	8x6	39-63	1480	200
SLOW125-300	1500	8x5	84-138	2950	200
SLOW150-570	1500	8x6	115-142	1480	290
SLOW200-530	1500	10x8	95-140	1480	215
SLOW200-530	2000	10x8	89-133	1480	215
SLOW250-470	2000	12x10	44-77	1480	210
SLOW250-610	2000	12x10	92-148	1480	290
SLOW250-610	2500	12x10	87-144	1480	290

Diesel engine pump


Electric motor pump and Jockey pump
Controller

4.RFQ
1.Q: Are your company is trading company or manufacture?
A: Shanghai Pacific Pump Group Co.,Ltd. is a large professional manufacture for more than 18 years in china,and produce with their own factory.
2. Q: What's your factory workshops?
A: Our factory produce include casting,mechanical process,lathe process,heat treatment,assembly,and test,etc.Warmly welcome to visit & test our factory any time.
3. Q: How about your pumps price?
A: Our price is factory price,and insist high quality for long-term cooperation.
4. Q: How to do if the pump or parts have operation problem within your warranty?
A: Tell me details timely,and show me pictures,we will send you solution at once without any hesitation.
5. Q: We don't know which pump model we need,can u help us?
A: Yes,pls tell me your detail requirement,include liquid,flow rate,head,etc.and our engineers team will calculate & select most suitable pump model for u,offer pump solution for u.
Warmly welcome to visit our factory,any question just feel free to contact me.
