Shipboard Crane Advanced Multiple Certifications ODM Factory Outlet OEM Manually Operated Lift

Product Description

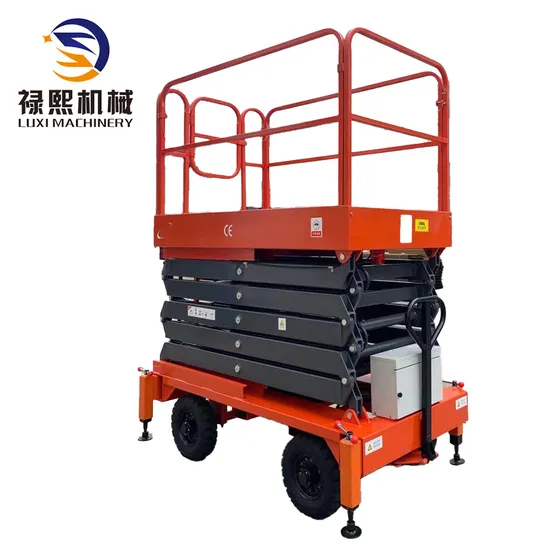

450kg Lifting Capacity hydraulic lift with cheap price
Advantage: 12 years lift platform manufacturing enterprise integrating R&D, production and sales. Experienced export team World famous brand spare parts Quick responses For after-sale service,we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply 24-hours technical support by email, telephone or other communication online.We could reply to you in 2 hours after received your any questions even on weekend and holidays engineers are available to your company if necessary.

Model	SJY0.45-6	SJY0.45-7.5	SJY0.45-9	SJY0.45-11	SJY0.45-12	SJY0.45-14	SJY0.3-16	Standard Configuration AC 380V Emergency lowering valve Leveling device with supporting screw Waterproof electric box Emergency stop button Optional Configuration AC 220V (for 6m - 11m platform), DC, AC/DC, Diesel Remarks All the Diemensions here is for your reference,The Finished Products are subject to the actual Dimensions. We accept customization.
Max platfom height(mm)	6000	7500	9000	11000	12000	14000	16000
Min platform height(mm)	980	1250	1500	1600	1700	1800	1980
Platform size(mm)	1800*900	1800*1000	1800*1000	2100*1150	2450*1350	2450*1350	2800*1500
Rated load(kg)	450	450	450	450	450	450	450
Lifting time(s)	54	72	83	88	90	120	145
Voltage(V/Hz)	380/50	380/50	380/50	380/50	380/50	380/50	380/50
Motor Power(kw)	1.5	1.5	2.2	3	3	4	5
Overall length(mm)	2000	2000	2000	2250	2600	2600	2950
Overall width(mm)	1080	1200	1200	1350	1550	1550	1750
Overall height(mm)	980	1250	1500	1600	1600	1800	2180
Extended outriggersize(mm)	600	700	700	700	700	800	850
Overall weight(kg)	650	1100	1260	1380	1850	2500	2700

FAQ
1.Q:How about your delivery time?
A: Lead time 5 days for in stock, If need customized, it will take about 15 -30 working days.
2.Q:Why should I buy from you not from other suppliers?
A:We are professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using. We are a large-scale lifting platform manufacturing enterprise integrating R&D, production and sales.
3.Q:How long is your product warranty?
A:The product warranty period is 12 months.
6.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.
