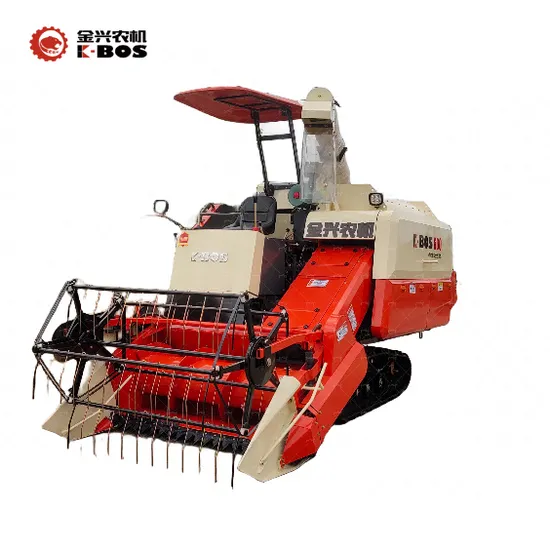

Combine Harvester Small Grain Tank Multifunctional Professional Harvester
| US$8,600.00-9,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4LZ-2.2
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Self Propelling
Certification
ISO9001:2008, CE, CNAS
Color
Red and Yellow
Condition
New
Application Field
Agriculture
Rush Order
Support
Gauge
920
Net Weight
2410 Kgs
Power Range
45HP-60HP
Transport Package
Naked Packing
Trademark
K-BOS
Origin
Deyang City, Sichuan Province
HS Code
84335100
Production Capacity
3000
Packaging & Delivery
Package Size
430.00cm * 198.00cm * 267.50cm
Package Gross Weight
2410.000kg
Product Description
Model 4LZ-2.2 is the first multi-functional small longitudinal axial flow combine harvester in China.Equipments:Four Cylinder diesel engine,Power range from 45HP to 60HP. 50 Gearbox, 28CC HST, 400mm Width Rubber, With Reverse Device for Conveying transmission, Low consumption,Light weight,easy -maintenance
Multi-functional : Rice, Wheat, Soybean, Maize,Rapeseeds, and other granular crops.
High Efficiency:Strong Power,Flexible Walking,High capacity. Theoretical harvest speed 0.4-0.5ha as fast as the double thresher type with 2Meter harvester. 6-7 times fast more than the Hand-held mini harvester
Adaptability: Specially design for Hilly area,Small field, the light weight 1850kg offer our machine a low ground pressure and lower fuel consuption of 16 Litre per hectare.
This machine is easy for operation and maintence, it is a safety and energy-saving machine.
SPECIFICATION
| Specification: | |||
| Product Model | 4LZ-1.6Z Combine Harvester | ||
| Overall Dimension Length×Width×Heights ( mm ): | 4300×1980×2675 | ||
| Weight (kg) | 2410 | ||
| Productivity of Operating Hours(hm²/h): | 0.05~0.48 | ||
| Engine | Engine Model | 4B2-60U32 | |
| Rated Power ( kw/hp ) | 44.2KW/60HP,51KW/70HP | ||
| Engine Type | Water-Cooled, 4-Cylinder, DI-Injection, Vertical Turbocharged Diesel. | ||
| Rated Rotation Speed (r/min) | 2400 | ||
| Traveling System | Type of Gearbox: | HST X (3F, 3R) Hydraulic type + HST(3F, 3R) | |
| Rubber Track(mm): | 400 x 90 x 46 | ||
| Gauge | 920 | ||
| Minimum Ground Clearance (mm) | 280 | ||
| Cutting header | Height Adjustment | Hydaulics. | |
| Cutting Width ( mm ) | 1550 | ||
| Header auger type | Telescopic Screw Conveying | ||
| Pickup Reel | D800mm; Qty 5 Eccentric Tooth(off-centre) | ||
| Threshing System | Threshing System | Spiked Tooth Axial Flow | |
| Threshing Cylinder Quantity | 1 | ||
| Cylinder Diameter×Length ( mm ) | φ540 x 1521 | ||
| Cleaning Mechanism Type | Air and Screen Cleaning, Vibrating Sieve adjustable | ||
| Grain Storing | Automatic Unloading | 950L 360° / 90° Big Grain Tank Capacity 950L with 360° / 90°Unloading Auger | |
| Manual Operation | 350L Small Tank Capacity 400L by Manpower | ||
