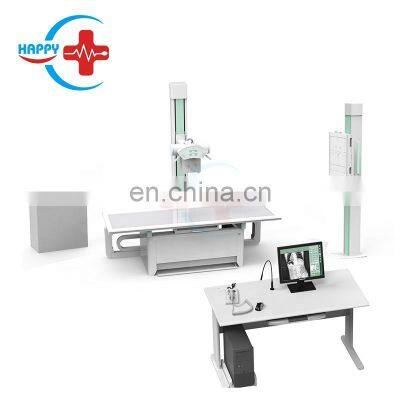

HC-D017C Medical 50KW High Frequency Digital X ray Radiography System with digital flat panel detector

Product Description

Product Description
HC-D017C Medical 50KW High Frequency Digital X ray Radiography System with digital flat panel detector
Trade assurance
Product Description
Applications:
Used for the digital photography of patients’ chest, abdomen, bone and soft issue etc.
Features:
lThe floating table with bucky stand can meet the photographic requirements of different standing and lying positions. The bed floating and electromagnetic lock design makes it convenient for the accurate position of the lying patient, operation is much more convenient and flexible.
lThe world leading Toshiba 14” *17” OEM digital flat Panel detector can help you get the high-definition images.
lThe leading domestic high power compact high frequency X-ray generator and high frequency power inverter makes the machine much more compact and more convenient without the extra high-voltage generator and cable.
lThe application of the KV and MA digital closed-loop control technology and the real time control of the microprocessor ensure the accuracy and repeatability of the dose.
lThe multiple automatic protection features and fault tips ensure safety during the operation process.
Configurations:

Part Name	Qty
Control Console	1 unit
HF HV generator	1 set
X-ray tube assembly	1 unit
Collimator	1 unit
Radiography Table	1 unit
Bucky Stand	1 unit
Flat Panel Detector	1 set
Image acquisition Workstation	1 set
Display	1 unit
Cables etc accessories	1 set

Specifications:

Item		Content	Technical Parameter
Power Supply		Voltage	380V
		Frequency	50Hz
		Capacity	≥40kVA
		internal resistor	≤0.15Ω
Generator		Power Output	50KW
		Inverter Frequency	30 KHz
	photography	Tube Voltage	40kV—150kV
		Tube Current	10mA—320mA
		Exposure time	1.0ms—6300ms
Digital Controlled X-ray Tube		Tube Focus:Large Focus/Small Focus	1.2mm /0.6mm
		Input Power	Big focus 40kW / Small Focus 20kW
		thermal capacity	110KJ
		Rotary anode speed	2800rpm

Bucky Stand:
Radio-graphic device movement along pillar ≥1300mm
Cassette SID: 450 ~1780mm
Fixed grid: Grid density 103L/INCH, grid 10:1 ;SID 180cm;Size: 15″×18″
Flat Panel Detector
Vision size:358mm(H)×430 mm(V)
Pixel Matrix: 2560(H)×3072(V)
Pixel gap:139 μm
Imaging time:less than 10s
Limiting resolution:3.5 lp/mm typ
A / D transform:14 bit
Energy range:40 - 150 kVp
Biggest input dose(low transmission gain):4 mR / frame
Date out:A 16-bit digital output Ethernet(1000BASE - T)
Command control:Ethernet(1000BASE - T)
Power input:DC 24V 4.8A
Work Station:
CPU System Brand: DELL OPTIPLEX 7010 commercial use
Processor:Core™ i5-3570 processor
RAM:4GB DDR3
Hardware:500GB SATA (7200 rpm)
Color LCD Monitor
19 inches 1M LED backing light LCD display, revolution1280*1024,5:4screen,dot pitch:0.294mm, contrast ratio:1000:1, brightness:250cd/m2, Grey feedback time:5ms ,visual Angle: 160/170°
Monochrome Monitor(Optional)1280*1024,19inches,brightness 1000cd/m2, Contrast Ratio 900:1
Work Station Software:
Basic operation: change control console password, edit ID, acquisite images.
Image management: change order, patient basic info editing, inquiry history images, resend history images, re-print history images, check images mark info, review history images, manage refused images, space reclaimed, image protection, and manual image deletion etc.
System management:ID edition, change ID password, ED refrigeration set, statistics info checking, detector calibration, equipment control, output order management, image measurement.
