Mini Metal CNC Lathe Metal Machine Tck46A Automatic CNC Slant Bed Lathe

Product Description

Swiss Lathe/CNC Automatic Lathe 4-axis -AK164
The Swiss type lathe, often recognized as a CNC automatic lathe, stands as a hallmark of precision machining excellence, embodying unparalleled craftsmanship and superior technology.
Experience the pinnacle of multi-functional processing with our innovative Swiss type lathe. It deftly performs tasks such as tapping, milling, drilling, and turning, all while boasting dual spindles and an advanced double Y-axis. This dual-action capability slashes processing time, making it ideal for batch operations involving uniquely shaped, non-standard parts like precision hardware and shafts.Step into a realm of unmatched precision with our trailblazing Swiss-style lathe, a true marvel in CNC automatic technology. This exceptional machine revolutionizes your workshop, seamlessly executing a variety of operations such as tapping, milling, drilling, and turning with extraordinary precision. Outfitted with dual spindles and an avant-garde double Y-axis, this lathe epitomizes efficiency, enabling concurrent processing that dramatically reduces production time. Crafted specifically for batch production of complex, non-standard components, it excels in fabricating precision hardware and intricately shaped shafts.
Product Description
Experience the pinnacle of precision and innovation with the Swiss Type CNC Lathe Machine, boasting an impressive 210mm Spindle Stroke Capability. This cutting-edge machine is a testament to engineering excellence, where a masterfully designed sliding headstock glides a segment of metal stock through the guide bushing with exquisite accuracy. The remaining workpiece is clamped securely within the sturdy chuck behind the bushing, safely distanced from the tooling area, thus guaranteeing unmatched stability and precision.Each section of the workpiece is expertly machined to exacting standards, as the bar stock smoothly progresses along the z-axis, readying for the next phase of meticulous machining. This segmented production technique exemplifies speedy and precise manufacturing, brilliantly counteracting part deflection induced by formidable cutting forces, thereby elevating the accuracy and quality of the final product.Modern Swiss-style lathes are engineering wonders, often featuring one or two main spindles alongside one or two auxiliary back spindles. The main spindle serves as the powerhouse for the majority of machining tasks, offering unrivaled performance. Meanwhile, the innovative secondary spindle, strategically positioned behind the workpiece, deftly takes over the part post-cutting. It adeptly executes a range of secondary operations, such as drilling or tapping into previously unreachable areas of the workpiece, demonstrating exceptional versatility and efficiency.Upon concluding these intricate processes, the secondary spindle elegantly releases the finished part into a collection bin, streamlining the workflow and removing the need for manual handling, a common necessity in standard CNC turning operations. Swiss lathes excel in processing a variety of materials, including carbon steel, aluminum, stainless steel, and brass, and are even capable of machining certain plastics like nylon and polycarbonate, though less frequently employed for wood. Discover the superior craftsmanship and efficiency that our Swiss Type CNC Lathe Machine embodies.

Product Parameters

Items		AK164
Mechanic	System	FANUC 0i TF-PLUS	SYTENC 22TB
	/Max.RPM	Main10,000min-1/Sub8,000min-1	Main6,000min-1/Sub6,000min-1
	Max.Turning Diameter	φ16mm
	Main Spindle Stroke	150mm
	()	5000rpm
	/	φ10mm
	/	M8/M5
	()	φ10mm
	()	M5
	Rapid traverse speed	32m/min(X1:24m/min)
Tools	O.D Tools	6X [12×12]
	I.N Tools	3X[φ25-ER16]
	()Cross Driven Tools(integration)	3X[ER16]
Motors	Main	2.2/3.7KW	3.9KW
	Sub	0.55/1.1KW	0.75KW
	Cross	0.5KW	0.5KW
	Drive	0.5KW	0.75KW
	Coolant	0.25KW
Others	Coolant tank capacity	180L
	Lubrication tank capacity	1.8L
	Central Height	1,050mm
	Weight	3,000Kg
	(××)The size (L×W×H)	1985×1321×1692mm
NC NC Control	/ Controllable Axes	5axis/4axis
	LCD	LCD 8.4"
	System standard parameters	Standard
	Rigid tapping	Standard
	Helical interpolation	Standard

Items
Standard units	Floodlight	The product output device
	Transformer	Centralized lubrication system
	C+ The spindle axis C + brake	Synchronus rotary guide bush holder unit
	C:0.001° C axis resolution: 0.001 °	Auxiliary shaft workpiece ejection device
	M Air blow on Sub spindle	Cooling box
0ptionanl units	Bar feeder	Front power tools
	Oil cooler	4 4axis cross tools
	Chip conveyor	cut-off tool detector
	High pressure pump	45 4axis or 5axis I.N tools
	Thread whirling rings	10 10axis I.N tools

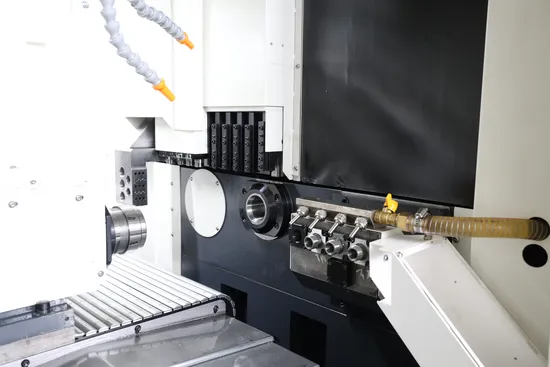

Detailed Photos
Application
Applications of Swiss MachiningSwiss machining technology, originally a marvel of the watchmaking industry, has impressively broadened its horizons, now offering its remarkable precision and versatility to a diverse range of sectors. Industries that harness the power of this cutting-edge tool include:1) AerospaceIn the aerospace sector, where precision and reliability are paramount, the demand for intricate and highly specialized components is deftly met by Swiss machining. This industry depends heavily on these expertly engineered lathes to precisely craft vital parts from superior materials like aluminum alloys and steel. Swiss CNC High Precision Lathe Metal Automatic Fabrication Tool 164 ensures the precise creation of essential items such as fans and fasteners, which are pivotal to aerospace innovation and safety.2) Medical devicesWithin the medical arena, renowned for its stringent standards and the need for utmost precision, Swiss-type lathes are indispensable for the manufacture of delicate, intricately designed components. These machines form the cornerstone of producing surgical instruments and implants, upholding the strict precision standards demanded by the medical field, ensuring patient safety and effectiveness of medical procedures.3) ElectronicsIn an era where electronics strive for ever-greater miniaturization and sophistication, traditional lathes are outpaced. CNC Swiss machining enters as the go-to solution, offering unparalleled accuracy for developing connectors, pins, and complex electronic components. It perfectly meets the avant-garde requirements of contemporary technology, supporting innovation while maintaining exceptional quality and consistency.4) AutomotiveAmidst the continually evolving and intricate mechanical challenges of the automotive sector, Swiss machining technology emerges as an essential asset. It plays a crucial role in fabricating intricate components that drive forward the frontier of modern automotive advancements, catering to the industry's demands for precision and efficiency.
By employing Swiss machining, automotive manufacturers can efficiently produce key elements such as suspension components, carburetor covers, and engine parts. This not only leads to significant cost efficiency but also enhances production processes and significantly accelerates manufacturing timelines, propelling innovation and maintaining competitive advantage in the automotive world.
