Product Description

Custom Made or Prefabricated 1000/2000/3000 Tons Cement Corn Wheat Soybean Grain Storage Silo Product Description
Fabricated steel silo - Flat bottom type
Steel silo with spiral rolled edge process, referred to as spiral steel silo.
The spiral steel silo is made by spiraling the steel plate with a certain width into the rolling equipment during construction.
And also has many features:Temperature measurement system,Clean up the system&Dedusting system,Ventulation System and so on.
Advantages:
1.Good quality: grain silo material is double side galvanized steel, and all steel silo parts are manufactured in a factory, so the quality can be totally controlled.
2.Good air-tightness
3.All set auxiliar: temperature controller , DCS controller, level indicator, loading and discharging system.
4.Excellent stability
5.long-life time: 30 years working time.
6.Silo diameter: from 3m to 25m.
Features:
1.Automatic-flow unloading;
2.Hopper angles can be 45° and 60°;
3.Easily to be installed;
4.Less grain residues in steel insulated rice storage silo.

Detailed Photos
Grain Steel Silo Production Process

Product Parameters

Popular Hopper Bottom Steel Silo Technical Specifications
Capacity (Based on wheat density)	50Ton	100Ton	150Ton	200Ton	300Ton	500Ton	1000Ton	1500Ton
Model	TCZK 03605	TCZK 04507	TCZK 05507	TCZK 06406	TCZK 07307	TCZK 07313	TCZK 11010	TCZK 12811
Diameter(m)	3.667	4.584	5.500	6.417	7.334	7.334	11.000	12.834
Total Height(m)	9.56	12.53	13.25	12.85	14.70	21.42	20.95	23.51
Volume(m³) Density:0.75ton/m³	69	150	222	273	415	699	1346	2039

Popular Flat Bottom Steel Silo Technical Specifications
Capacity (Based on wheat density)	1000Ton	1500Ton	2000Ton	2500Ton	3000Ton	5000Ton	8000Ton	10000Ton
Model	TCK 10014	TCK 11915	TCK 13715	TCK 15514	TCK 15518	TCK 18321	TCK 24718	TCK 25621
Diameter(m)	10.084	11.918	13.750	15.584	15.584	18.334	24.751	25.668
Total Height(m)	18.69	20.34	20.87	20.30	24.78	28.60	26.99	30.60
Volume(m³) Density: 0.75ton/m³	1335	2009	2701	2467	4145	6693	10879	13484

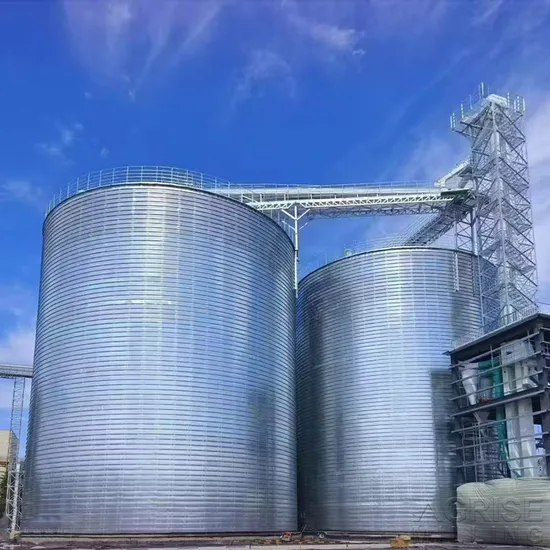

Sucessful Cases
