Furniture MDF PVC Edge Banding Strip Making Machine Fully Automatic Wood Banding Machine with Six Functions

Product Description

Product Description

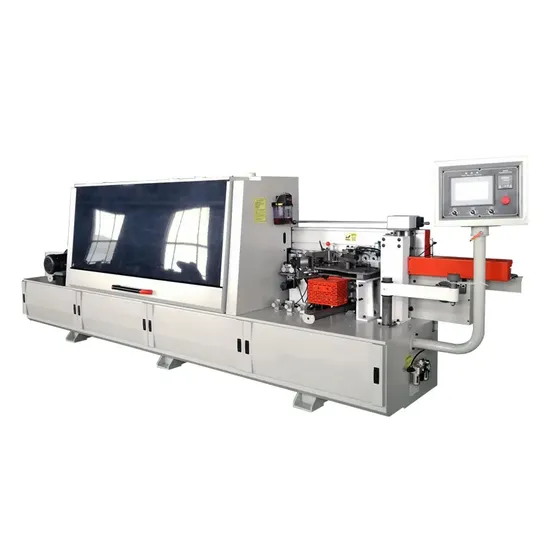

Automatic Edge Banding Machine

This machine has six function Gluing-Press- End cutting- Rough Trimming -Fine Trimming-Scraping-Polishing function,suitable for solid wood fiberboard,particle board,MDF,and other panel for furniture,edge of the main PVC,polyester,melamine,and wood etc.The steel plate base was laser cutting ,welded body made of solid defromation does not increase the stability of the machine to ensure each part can work well ,famous brand motor and high quality electric componets.

Product Specification

Parameters
Model	368
Panel Thickness	10-60mm
Edge Band Thickness	0.3-3mm
Panel Width	≥60mm
Panel Length	≥150mm
Feeding Speed	15-23m/min
Working Pressure	0.6Mpa
Voltage	380V/50HZ/3PH
Gluing Motor	0.75KW 50HZ 1400RPM
End Cutting Motor	0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor	0.75KW * 4 300HZ 18000RPM
Buffing Motor	0.37KW * 2 50HZ 1400RPM
Conveyor Motor	2.2KW
Glue Pot Heating Power	2.4KW
Assistant Heating Power	0.3KW
Lighting Power	0.05KW
Lifting Motor	0.25KW
Total Power	10.43KW
Dimension	4700x1000x1650mm
Wooden Crate Package	4800×1050×1760mm

Detail Photos

Gluing and Press Unit End Cutting Unit

Trimming Unit Scraping Unit

Optional Function

Pre milling Corner rounding
