Full Auto Air Filter Making Paper Non Woven Rotary Knife Blade Pleating Machine

Product Description

Full Auto Air Filter Pleating Cutting Assembly Production Line

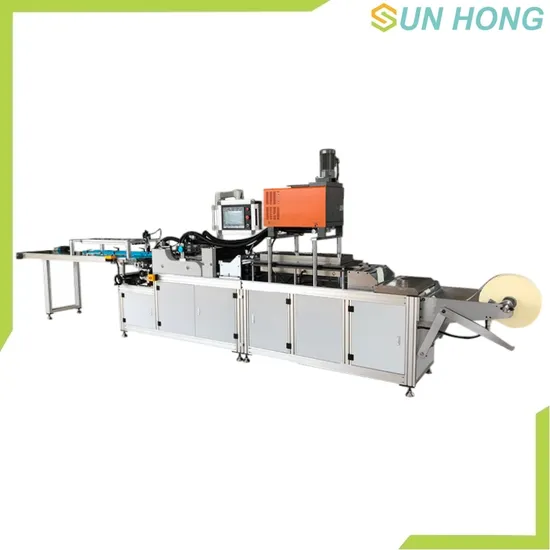

Rotary Pleating Machine
1.Speed: 5-70m/min
2.Pleating height: 15- 75mm
3.Max. Pleating width 600mm
4.Motor power: 1.8kw
5.Weight: 1500kg
6.Size: 4200x1050x1300mm
7.Heating system :4kW
8.Working Pressure:0.5MPa Automatic cutting machine
It is mainly used for cutting after paper pleating.
1.Max. Width:650mm
2.Cutting Speed:5 pcs/min
3.Pleat Quantity:20-50mm
4.Working Witch:0.6MPa
5. Control Way:1) Sensor cut off 2) Foot pedal cut off 3) Button cut off Filter Paper Filling Machine
This machine is used to put the folded filter paper into the outer melt mesh by applying hot melt glue at the beginning and end.
1.Working width 610mm 800mm 1050mm
2.Speed 1- 3 pcs/min
3.Working pressure 0.5Mpa
4.Total power:4.5KW,
The machine is with 5kg hot melt gluing device,easy operation and high efficiency.
