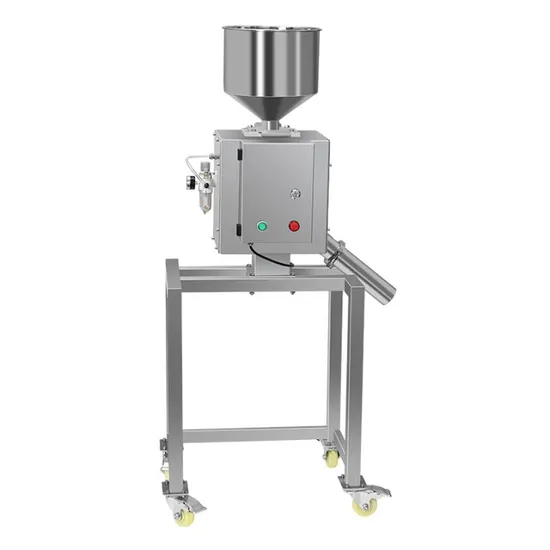

Gravity Fall/Throat Metal Detector Separator for Food Plastic Industrial Granule

Product Description

Product DescriptionGravity Fall/Throat Metal Detector Separator for Food Plastic Industrial Granule
A metal separator is a device used to detect and remove unwanted metal contaminants from bulk materials like particle, granule, powder, flake, etc. during manufacturing or processing. It helps ensure the quality and safety of the final product by preventing metal contamination, which can damage machinery or pose risks to consumers.
Coso metal separator can quickly and accurately detect and reject metal impurity and can be easily integrated into production lines. We have many different types of metal separators, such as type for particle, for powder, for liquid, for flake, for pneumatic conveying pipe, for material columns, with iron remover, with auto-feeding, with vibrator, for injection molded parts, etc. They are widely used in food, plastic, pharmaceutical, recycling industries.
Product Application
Product Feature1.Customer can choose to have only the detection part or additionally the hopper and frame
2.Different sizes and sensitivities are available
3.Casters with brakes for easy movement and fixation
4.LCD screen is convenient for viewing information and adjusting parameters5.The whole machine is made of SUS 304
6.Different machine connection method can be customized, we have flange connection, clamp connection and soft connection
7.We have rich machine types to cover all application scenarios
8.Factory is ISO9001 certified, machine is CE certified
Product Parameters

Model	Inner Diameter (Ф mm)	Sensitivity		Air Compression	Max Throughput (L/h)	Material Temperature	Defectives Eliminated Time
		Fe Ф	SUS Ф
PEC2005A-30	20	0.3 mm	0.6 mm	3~5 Bar	300	< 80ºC	0.3~5s
PEC2005A-50	40	0.5 mm	1.0 mm	3~5 Bar	2000	< 80ºC	0.3~5s
PEC2005A-70	60	0.8 mm	1.2 mm	3~5 Bar	5000	< 80ºC	0.3~5s
PEC2005A-100	80	1.0 mm	1.5 mm	3~5 Bar	12000	< 80ºC	0.3~5s
PEC2005A-120	100	1.2 mm	2.0 mm	3~5 Bar	16000	< 80ºC	0.3~5s
PEC2005A-150	130	1.5 mm	2.5 mm	3~5 Bar	25000	< 80ºC	0.3~5s
PEC2005A-170	150	2.0 mm	3.0 mm	3~5 Bar	44000	< 80ºC	0.3~5s

Notes
1.The sensitivity in the table is the test block falling freely through the detection of the pipeline,the actual detection sensitivity may be different according the characteristics of the product or the working environment,it should be based on the actual detection sensitivity.
2.The above list is only part of the common technical parameters,for more technical parameters, please contact our customer service staff.
3.The company's products will continue to upgrade,if the above technical parameters are changed without notice, please refer to the latest parameters.
Company ProfileEstablished in 2005, Dongguan Coso Electronic Tech Co., Ltd. is a professional detection equipment manufacturer. The factory is located in Dongguan, China, with convenient transportation access, covers an area of 6000 square meters.
We concentrate on industrial metal detector, metal separator, checkweigher, weight sorting machine, X-ray inspection system and needle detector. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. With the strong ability of customization, we can provide professional solution to meet customers' requirements with competitive price. The machine is easy to operate because of modular design and friendly HMl.We have professional engineers and experienced workers, which guarantee the quality, stability of equipments.
We warmly welcome customers to cooperate with us. lf you are interested in our machines, welcome your kind inquiry.Q1: Are you a manufacturer?
Yes, our factory was established in 2005, we specialize in design and production of detection equipments which have been exported to over 80 countries around the world.
Q2: What kind of service do you provide?
ODM, OEM and OBM.
Q3: How long is your delivery time?
Around 15 working days after receiving your deposit.
Q4: What's your minimum order quantity?
One set.
Q5: Do you accept customization?
Yes, all of our products can be customized according to customer's requirements.
Q6: How is your after-sales service?
Online technical support and instant communication are always available;
Our products have one-year warranty;
You can send people to our company for training;
We can send engineers to your company to help when needed.
