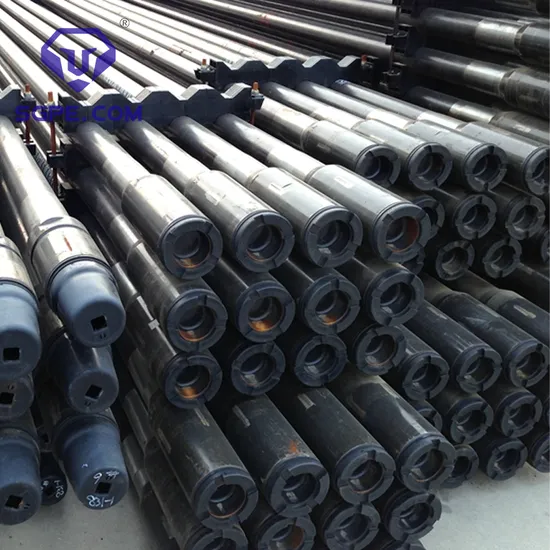

Nc38 Nc31 Drill Pipe for Oil Industry

Product Description

Introducing the Nc38 Nc31 Drill Pipe for the oil industry. This seamless drilling pipe is perfect for your drilling needs. Made with high-quality steel, it is durable and reliable. Choose from a variety of lengths and thread options to suit your requirements. Trust GPE Oil Machinery Co., Ltd for all your drill pipe needs.
API 5DP Drill Pipe - GPE Oil Machinery Co., Ltd
API 5DP Drill Pipe GPE Oil Machinery Co., Ltd offers high-quality API 5DP drill pipe seamless/drilling pipe that complies with the standards set by API SPEC 5DP and API SPEC 7. Our drill pipes are made from steel grades determined by the requirements of Group 1 (Grade E) and Group 3 (Grade X-95, Grade G-105, and Grade S-135) of API SPEC 5DP.
At GPE Oil Machinery Co., Ltd, we understand the importance of meeting customer requirements. Therefore, we provide drill pipe joints at the same level as per our customers' needs. Rest assured, our manufactured drill pipe joints adhere to the provisions specified in API SPEC 7.
Welcome to consult, we will provide the most comprehensive technical support! Detailed information on API 5DP drill pipe seamless/drilling pipe from GPE Oil Machinery Co., Ltd. This Nc38 Nc31 drill pipe is designed for the oil industry and is made of steel. It is available in various lengths and can be used for different drilling applications. The drill pipe is durable and reliable, making it an ideal choice for oil well drilling.

Size (in)	Nominal Weight (1b/ft)	OD of Pipe Body		Wall Thickness of Pipe Body		Conn. Type	OD of Pin and Box		ID of Pin
		(in)	(mm)	(in)	(mm)		(in)	(mm)	(in)	(mm)
2 3/8	6.65	2 3/8	60.32	0.28	7.11	NC26 (2 3/8 IF)	3 3/8	85.7	1 3/4	44.45
2 7/8	10.4	2 7/8	73.02	0.36	9.19	NC31 (2 7/8 IF)	4 1/8	104.8	2	50.8
3 1/2	13.3	3 1/2	88.9	0.37	9.35	NC38 (3 1/2 IF)	5	127	2 7/16	61.91
3 1/2	15.5	3 1/2	88.9	0.45	11.4	NC38 (3 1/2 IF)	5	127	2 1/8	53.98
4	14	4	101.6	0.33	8.38	NC46 (4 IF)	6	154.2	3 1/4	82.55
4 1/2	16.6	4 1/2	114.3	0.34	8.56	NC40 (4 IF)	6 1/4	158.8	3	76.2
5	19.5	5	127	0.36	9.19	NC50 (4 1/2 IF)	6 5/8	168.3	3 1/4	82.55
5	25.6	5	127	0.5	12.7	5 1/2 FH	7 1/4	184.2	3 1/4	82.55
5 1/2	21.9	5 1/2	139.7	0.36	9.17	5 1/2 FH	7 1/4	184.2	3 1/2	88.9
5 1/2	24.7	5 1/2	139.7	0.42	10.54	5 1/2 FH	7 1/4	184.2	3 1/2	88.9
6 5/8	25.2	6 5/8	168.28	0.33	8.38	6 5/8 FH	8 1/4	209.6	4 3/4	120.7
6 5/8	27.7	6 5/8	168.28	0.36	9.19	6 5/8 FH	8 1/4	209.6	4 3/4	120.7
