XCMG Official Slm2600s 2.6m3 Self Loading Cement Concrete Mixer

Product Description

Product Description

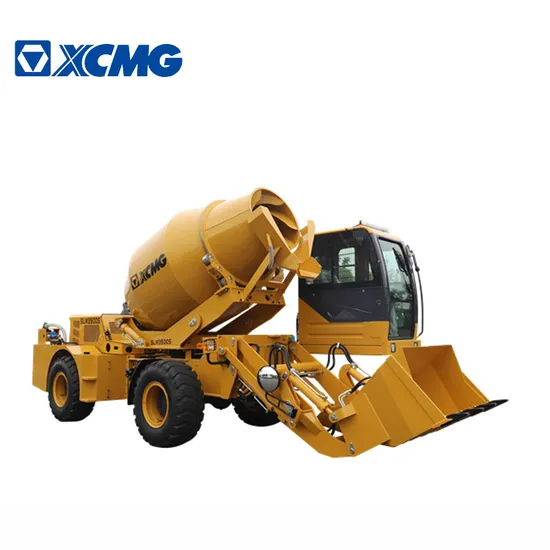

XCMG Official SLM2600S 2.6m3 Self Loading Cement Concrete Mixer
SLM3500S self loading concrete mixer is a new 3.5 cube concrete mixer, with a maximum driving speed of 40km/h and a production efficiency of about 15.5m3/ h. All bucket action through the pilot handle to achieve. * Output per lot: 3.5 cubic metres
* Drum rotation: discharge port height 1.8 meters, cab and tank horizontal rotation 270 tank can be raised and lowered
* ENGINE: Yuchai Power, diesel, water-cooled, 4 cylinders, 2600 RPM, rated power 85KW
Drive mode: The engine is directly connected to the 280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive
* SPEED: dual altitude, low speed 0-25 kph, high speed 0-40kph
* Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat
* Hydraulic System: Open type oil, plunger type motor, two gear pumps to participate in the work
* JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank
* Clay Groove: equipped with one 150CM Removable Chute to increase the length of discharge
* Water Supply System: Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper
* BRAKES:Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper
* Steering: Hydraulic articulated steering
* Fuel tank / Water tank: 1 * 800 l water tank, 130 l diesel fuel tank, 130 l hydraulic fuel tank
* Others: Q345 manganese steel frame, excavator luxury cab, driving impact, cement bucket, air conditioning Product Parameters

Model	SLM3500S
CAPACITY	4.5 batches/h or 15.5 cubic/hour
Weight	8100KG
Bucket(hydraulic gate)	0.65 cubic
TIRE(steel wire high pressure vacuum tire)	12R-22.5
Power System	24V
Length, width, height / wheelbase / Wheelbase	7100mm*2750mm*3300mm*2700mm*2200mm
CLIMB	40°
Turning radius	2900mm

Product Picture

Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
