Horizontal Lathe Machine Cp6176L/Cp6276L, Universal Horizontal Gap Bed Type
| US$5,000.00-8,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CP6276L
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Bed Type
Normal/Gap
Table Size
750/1000/1500
Transport Package
Pallet
Specification
2020*1120*1820
Trademark
Hercules
Origin
China
HS Code
84581900
Production Capacity
20000 Sets/Year
Product Description
Heavy Duty Horizontal Gap LatheFeatures:
This lathe is a special purpose heavy duty horizontal face lathe
It is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on
With large-diameter, medium length for all kinds of workpieces .
Standard Accessories:
1.Ø250mm 3-jaw chuck for 50B,50L series
Ø325mm 3-jaw chuck for 66B,66L,76L series
2.Thread chasing dial
3.Chip guard for L≤2m lathe
Follow Chipe guard for L≥3m lathe
4.Footbrake
Optional Accessories:
1.Ø630mm Face plate for 50 series
Ø800mm Face plate for 66,76 series
2.Ø400mm 4-jaw chuck
3.Ø20-140mm Small steady rest
4.Ø130-260mm Large steady rest
5.Ø20-80mm Follow rest
6.Ø250mm Drive plate
7.4-position stop for saddle
8.4-position stop for cross slide
9.Micro stop for saddle
10.Quick change tool post
11. Damping washer
12.Taper turning attachment(TTA)
13.Halogen work lamp
14.Digital readout(DRO)
15.CE standard compliance
16.Chuck cover
| Specification | Unit | CP6½66L | CP6½76L |
| Swing over bed | mm | 660 | 760 |
| Swing over cross slide | mm | 430 | 530 |
| Distance between centers | mm | 1000,1500,2000,3000,4000,5000 (4000 & 5000 only for CP61 series) | |
| Swing in gap | mm | - 870 | - 970 |
| Width of gap | mm | 240 | 240 |
| Width of bed | mm | 390 | |
| Spindle nose | D8 | ||
| Spindle bore diameter | mm | 105 | |
| Morse taper of spindle center | 1:20 | ||
| Spindle speed | rpm | 6-1120 (24 steps) | |
| Max output torque of spindle | N.m | 1500 | |
| Range of longitudinal feed | mm/rev | 0.063-6.43 (0.0025-0.25in/rev) | |
| Range of cross feed | mm/rev | 0.027-2.73 (0.00106-0.107in/rev) | |
| Lead screw pitch | 12mm(metric system)/2 t.p.i(inch system) | ||
| Metric threads | mm | ||
| Inch system threads | t.p.i | ||
| Module threads | 0.5-112mm (42 kinds) | ||
| Diameter pitch threads | 56-1/4DP (45 kinds) | ||
| Cross slide travel | mm | 360 | |
| Top slide travel | mm | 200 | |
| Section specification of tool post | mm | 25×25 | |
| Longitudinal rapid traveling speed | m/min | 4.5 (50Hz) / 5.4 (60Hz) | |
| Transversal rapid traveling speed | m/min | 1.9 (50Hz) / 2.3 (60Hz) | |
| Morse taper of tailstock center | M5 | ||
| Max travel of tailstock quill | mm | 150 | |
| Tailstock quill diameter | mm | 75 | |
| Main motor | kw | 11 | |
| Rapid travel motor | 250W/1360rpm | ||
| Coolant pump motor | 90W/25L/min | ||
| Hercules Machinery Equipment Ltd. | |||

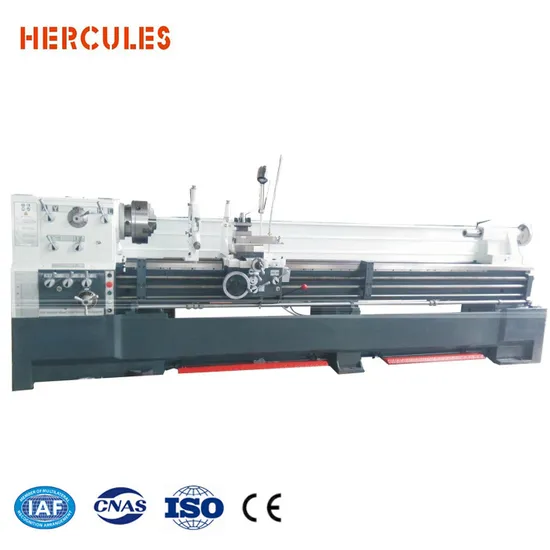

Machine Image
