US$4,000.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Material Processed
Rubber
Automation
Non Automation
Computerized
Non-Computerized
Product Name
Rubber Cutter
Function
Cutting Plastic Rubber
Control Method
Manual Control
Transport Package
Plastic Film
Production Capacity
50sets/Month
Packaging & Delivery
Package Size
150.00cm * 130.00cm * 320.00cm
Package Gross Weight
2500.000kg
Product Description

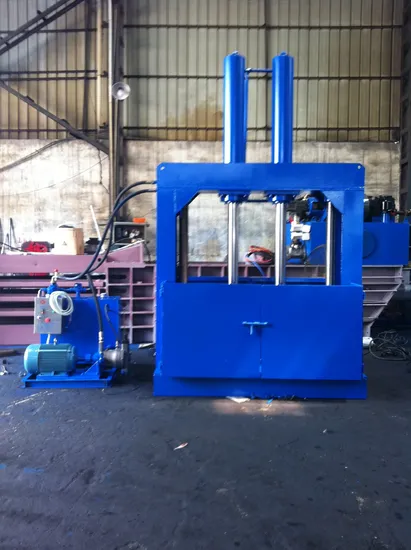

Rubber Guillotine Cutter / Hydraulic Rubber Bale Cutting Machine
1.The rubber cutter machine divided two series in my company manual and automatic
2.The bale cutter is mainly used to cut natural rubber, synthetic rubber, and other plastics materials, especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber.
3. This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system.When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.
4.Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife,at the same time it protects the cover of the cylinder
Characteristics:
1. low noise
2. It has solid construction, reasonable design, high production efficiency, easy operation.
3. Cutting knife is controlled by hydraulic system, and reciprocating motion.
4. CE standard ISO9001 certified.
60Ton Rubber Cutter
blade length:1000mm
travel position:900mm
cylinder:Φ180mm
motor:11kw
Model | Blade width (mm) | Stroke (mm) | Pressure (ton) | Oil pump discharge (L/Min) | Oil capacity (KG) | Motor power (KW) | Total weight (KG) | Dimension (mm) |
RC-40T | 900mm | 900mm | 40 ton | 46 L/min | 70kg | 7.5kw | 1400kg | 1200X900X2800mm |
RC-60T | 1000mm | 900mm | 60 ton | 63 L/min | 110kg | 11kw | 2500kg | 1300X800X2900mm |
RC-100T | 1200mm | 1000mm | 100 ton | 63 L/min | 130kg | 15kw | 3100kg | 1400X1000X3100mm |
RC-250T | 1500mm | 1000mm | 250 ton | 250 L/min | 200kg | 37kw | 4000kg | 1800X1200X3300mm |
RC-300T | 1500mm | 1000mm | 300 ton | 340 L/min | 250kg | 37+11kw | 4500kg | 1800X1200X3400mm |
