Residential Home Elevators Wheelchair Lifts Stair Lifts for Disabled
| US$2,500.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
X-500L
Driving Type
Hydraulic Type
Capacity
250kg
Persons
2-3 Persons
Speed
70mm/S
Control Mode
Push-Button Control
Position of Computer Room
Outdoor or Indoor
Elevator Door
Customized
Door Knife
Customized
Deceleration Device
With Deceleration Device
Attendant
Without Attendant
Color
Customized
Lifting Height
1m-10m
Production Date
30 Days After Receiving Customers′ Deposite
Features
Customized
Transport Package
Export Wooden Box Packaging
Specification
Customized
Trademark
APLUS
Origin
Chnia
HS Code
8428909090
Production Capacity
10000 Sets Per Month
Product Description

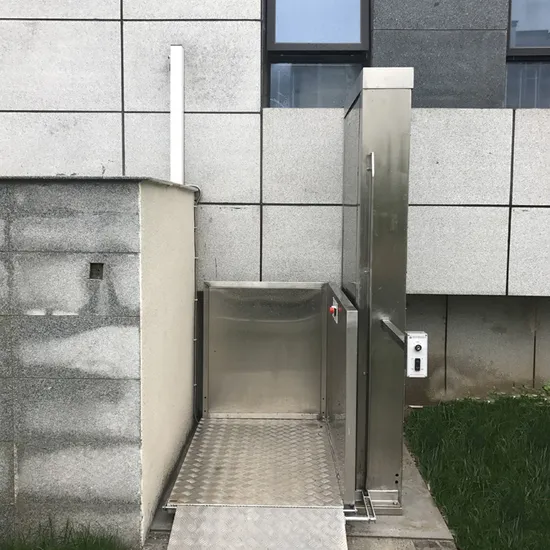

Wheelchair platform lift for home is customized products for lifting cargo or wheelchair for disabled people.Wheelchair platform lift for home is suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts.
APLUS wheelchair platform lift for home has the features of smooth running speed, high safety , easy installation. small space required & no pits required.
| Technic Parameters and Functions | ||
| Voltage: | 220V/50HZ or Customized | |
| Overall Dimensions: | 1670mm(L)×1270mm(W)× (lifting height+550)mm (H) | |
| Lifting Height: | 2000mm (lifting height can be customized) | |
| The minimum height of the lifting base plate : | 60mm from the ground | |
| Installation: | No Foundation | |
| Lifting Speed: | 60mm/s inverter control, soft start soft brake | |
| Max Loading: | 240kg | |
| Guard Form: | 90° or 180° configuration | |
| Drive: | Screw Drive | |
| Control SupplyVoltage: | 24V/DC | |
| Power: | 2.2kw 220V/AC | |
| Control: | Rocker Self-reset, Switch Operation | |
| Outbound Call Form: | The upper and lower outbound call columns are installed on the ground attached to the stop floor and the equipment is linked to the control platform, running up and down or controlled by remote control. | |
| Handril: | Matte space aluminum | |
| Environment: | Indoor & Outdoor | |
| Temperature: | -20°C-60°C | |
| Appearance: | Electrostatic spraying or stainless steel plate | |
| Color: | Customized | |
Safety Euipment | Safety Rocker: | When the equipment runs up, the rocker will automatically tilt up to prevent the wheelchair from sliding out of the platform |
| Overload Protection: | Does not operate when overloaded | |
| Emergency Stop: | Press the emergency button switch to control the machine to run up or down. | |
| Emergency Descent: | Electric emergency descent | |
Safe performance and pit-free installation design bring you the convenience of barrier-free access construction and elevator-like enjoyment. Widely used in residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, hospitals and other public places. It has the characteristics of novel design, safety and stability, beautiful appearance, low noise, low temperature resistance, etc. In line with ASME A18-1 and CSA-B613 standards, it is well received by domestic and foreign customers.
