Plastic Pipe Machine/Plastic Pipe Production Line/Plastic Pipe Manufacturing Plant/PPR PE HDPE Pipe Making Machine

Plastic Pipe Machine/Plastic Pipe Production Line/Plastic Pipe Manufacturing Plant/PPR PE HDPE Pipe Making Machine

US$20,000.00-120,000.00 1 Set (MOQ)

Basic Info.

Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS
Customized
Customized
Condition
New
After-sales Service
Installation, Commissioning, Spare Parts
Control
PLC Siemens
Touch Screen
Siemens
Motor
Motor
Inverter
ABB550-580
Application
HDPE, PP, LDPE Pipe
Screw Design
Single Screw
Bearing
NSK
Machine Frame Material
Stainless Steel
Output (Kg/H)
220-1600
Screw Material
38crmoala
Transport Package
Wooden Case
Specification
Stainless steel
Trademark
QUEENS
Origin
China
HS Code
8477209000
Production Capacity
10 Units/Month

Product Description

PRODUCT DESCRIPTION
HDPE pipe prodution line is primarily used in the manufacturing of PE pipes with diameters ranging from 16mm to 1600mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation. It also excels in the production of anti-flammable and anti-static electricity pipes using a two or three layer spiral mould for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.
TECHNICAL PARAMETERS (33D)
Model
Pipe diameter
Extruder
Max. output
Haul-off speed
Motor power
PE63
16-63mm
SJ65/33
220kg/h
12m/min
55kW
PE110
20-110mm
SJ65/33
220kg/h
12m/min
55kW
PE160
50-160mm
SJ75/33
300kg/h
10m/min
90kW
PE250
90-250mm
SJ75/33
400kg/h
8m/min
110kW
PE450
160-450mm
SJ90/33
500kg/h
5m/min
160kW
PE630
315-630mm
SJ120/33
850kg/h
3.3m/min
280kW
PE800
500-800mm
SJ120/33
1000kg/h
1.8m/min
315kW
PE1200
710-1200mm
SJ150/33
1300kg/h
0.8m/min
355kW
TECHNICAL PARAMETERS (38D)
Model
Pipe diameter
Extruder
Max. output
Haul-off speed
Motor power
PE63
16-63mm
SJ60/38
320kg/h
30m/min
70kW
PE110
20-110mm
SJ60/38
380kg/h
20m/min
90kW
PE160
40-160mm
SJ60/38
460kg/h
15m/min
110kW
PE250
50-250mm
SJ75/38
600kg/h
12m/min
160kW
PE450
110-450mm
SJ90/38
850kg/h
8m/min
250kW
PE630
250-630mm
SJ90/38
1050kg/h
4m/min
280kW
PE800
500-800mm
SJ120/38
1300kg/h
2m/min
315kW
PE1200
710-1200mm
SJ120/38
1400kg/h
1m/min
355kW
PE1600
1000-1600mm
SJ90/38&SJ90/38
1600kg/h
0.6m/min
2*280kW

MACHINE LIST
Optional equipment: gravimetric control system, ultrasonic wall thickness measuring system, laser printing machine. Main Features: 1. We provides extremely high-performance extrusion technology for the plastics production. 2. Cost-effective energy and Material saving. 3. HDPE pipe extrusion line can produce product range : 20mm-1600mm. 4. We offer the total solution from automatic-feeding system, co-extrusion to winding or stacking even customized project.
Your benefits at a glace:
1. High output and performace
2. Optimal energy consumption
3. High grade pf automation
4. Extended production ragne
5. Excellent cost-performance ration
6. Pipe air cooling system to short the cooling and to improve the pipe quality
DETAILED IMAGES
SIEMENS PLC & TOUCH SCREEN
Feature:
Intelligent & centralized control
Automatic preheating
Remote monitoring
Intelligent alarm system
Optional: B & R Control System

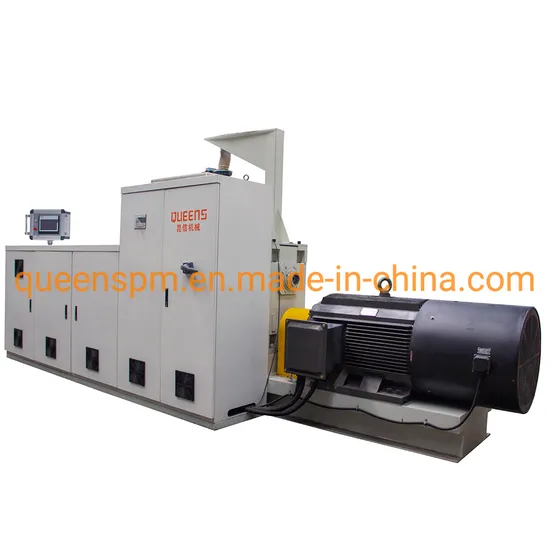

MAIN MOTOR (AC)
Feature:
Extruder adopts high standard "SIEMENS" AC frequency or Servo motor with high performance direct connection reducer, with speed measure feedback, provides stable screw rotation output
EXTRUSION MOULD
Feature:
Extrusion head with spiral structure, make sure the melt in side distributed evenly so as to achieve best plasticization.
Calibrator design with water ring which is easy to clean, to achieve better cooling and then fast forming.
GEAR BOX
Feature:
Mainly we use the best brand in China-CHENGBRAND. While if the client has special requirement, we can also use ZAMBELLO, REXNORD, FLENDER and some brands from Tainwan.
VACUUM CALIBRATION TANK
Feature:
Advanced pipe line layout design and adjustable spray angle for better cooling effect, dense pipe line in the first zone for fast cooling.
It is equipped with flowmeter, pressure protection system, water level control, temperature control drainage, water inflow control.
HAUL-OFF MACHINE
Feature:
For the different pipe size and different speed requirement, we develop kinds of haul-off unit accordingly.
Optional to choose multi-belt haul-off unit with wide speed range.
Each belt is controlled by independent motor, optional servo motor guarantee speed uniformity.
CUTTING MACHINE
Feature:
Cutter is synchronously controlled by servomotor to make sure precise cutting length.
It is adopting universal clamp.

ABOUT QUEENS
QUEENS Machinery is a creative company, focusing on R & D of plastic extrusion and recycling system, providing turkey solutions for plastic pipe, profile and tile as well as plastic recycling system such as washing and recycling machines, and pelletizing machines.
QUEENS's products fulfill the needs of users in a very direct way due to over 10 years of knowledge and experience in plastic extrusion field, which also helps us to contribute actively to the success of customers by offering sustainable solutions that meet industry needs.
QUEENS offers a complete portfolio of support and consulting services all the time, from project engineering to after-sales service at its best, ongoing production optimization, training and advisory services, even end product development. We aim to provide the excellent quality machines with affordable price to the clients.
OUR SERVICE
Pre-Sales Service
* Detailed technician offer, factory or line layout providing.
* Technical support, market analyze and other necessary support.
* Factory and machine quality checking.
After-Sales Service
* Install the machines and train the workers for our client.
* 24 hours service line to solve the after sales problem.
* Long term and fast spare parts providing for each customer.
PACKING & DELIVERY
Packaging
Size
According to the machine size
Weight
According to the machine size
Packaging Details
The normal package is PE film wrapped around & wooden pallet. If the client has special requirement, the wooden box can be chosen too.


FAQ
Q: What is acceptable payment terms?
A: T/T or L/C at sight.
Q: What is the warranty time of the machines?
A: It will be 12 months since acceptance of the machines or 15 months since delivery to loading port.
Q: What about your after sales service?
A: Engineers available to make installation, commission, training, and providing after-sales service overseas.
