High-Performance CNC Plate Drilling Machine for Industrial Use

Product Description

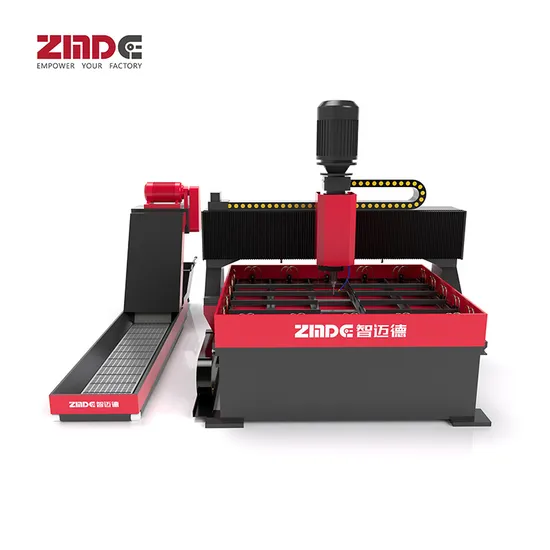

ZMDE High-Speed Automatic CNC Steel Plate Drilling Machine

>Cost-effective Equipment <1. Crafted from robust materials ensuring a low failure rate, the equipment minimizes maintenance costs. All critical components such as ball screws, linear guides, hydraulic parts, electrical parts, servo motors, and frequency converters are sourced from industry-leading brands.
2. Features CRT display for automatic chip removal, significantly reducing the cost and time of manual cleaning.
3. Unmatched precision ensures high qualification rates of workpieces, resulting in lower consumables costs.
>Simple Operation, High Productivity < 1. Human-machine interface offers clear visuals, allowing for the creation of automatic machining programs.
2. CNC and PLC control ensures accurate positioning.
3. Hydraulic clamps secure workpieces, operated via a foot switch for convenience and labor savings.
4. Equipped with 12 fast hydraulic clamps distributed around the table, allowing simultaneous clamping of four groups of workpieces.
5. Small workpieces can be clamped at the table corners, significantly reducing production preparation times and boosting efficiency.
6. Clamping small workpieces at the table corners can drastically cut down the production preparation period and enhance efficiency.
> Guaranteed Quality, Wide Range of Applications <
1. Major components such as the gantry, column, and table are constructed from solid materials, giving the main machine a hefty weight of 6300kg.
2. Versatile across various industries, it serves as the vital equipment for plate processing.
3. Accommodates a wide range of drilling diameters, from 12mm to 50mm.
> Suitable for Various Production Scenarios <
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Supports small batch production of multi-species workpieces, capable of processing plates of different shapes like rectangular, round flanges, and polygons. Handles simultaneous processing of two or four different specifications of plates.
3. Enables the production of multiple layers of thinner sheets in stacks, with a maximum stacked drilled hole depth of 100mm.
4. Through upper computer software, it can automatically process start and end points, capable of drilling through holes, blind holes, step holes, and hole-end chamfers.
> Production Process Automation <
1. Line board integration offers a high degree of automation, with automatic positioning according to the drilling program.
2. Adjusts optimal feed rates based on different hole diameters.
3. Capable of automatic, continuous processing of large hole diameters, achieving one-time processing and molding.
4. Equipped with an automatic chip removal function.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
