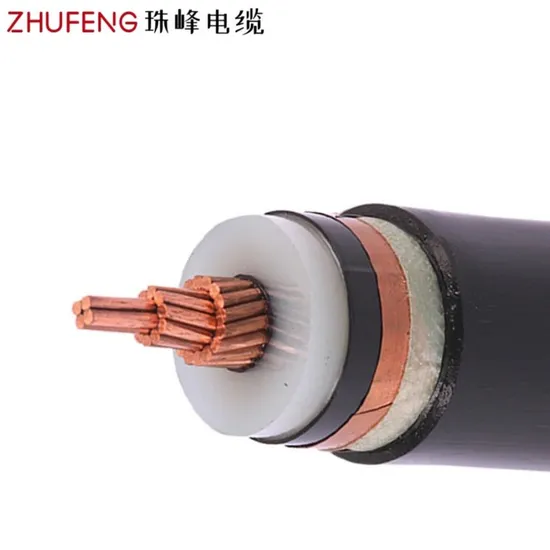

33kv 35kv N2xsy 400mm 500mm 630mm Ht High Tension XLPE Copper Armoured Power Cable

Product Description

33kv 35kv N2xsy 400mm 500mm 630mm Ht High Tension XLPE Copper Armoured Power Cable
Product Description
Product model: XLPE insulated PVC sheathed copper core medium voltage power cable
Number of product cores: 1, 3 cores
Product specifications: 50mm²--630mm²
Product colour: Black; other colours can be customized.
Rated voltage: 18/30, 21/35, 26/35KV.
The length of the whole plate: 100m/500m (national standard full meter).
Maximum conductor temperature during normal operation: 70°C for PVC insulation, 90°C for XLPE insulation.
Installation and laying temperature: The installation and laying temperature of the cable should be not lower than 0C.
Maximum temperature of the cable conductor during short circuit (maximum duration not exceeding 5 seconds): PVC insulation - 160°C for conductor cross-section ≤ 300 mm2, 140°C for conductor cross-section > 300 mm2; 250°C for XLPE insulation.
Scope of application: This product is suitable for use in lines with an AC rated voltage U0/U of 26/35kV for transmission and distribution lines.
Minimum bending radius allowed: Single-core cable: 20D without armour, 15D with armour Multi-core cable: 15D without armour, 12D with armour Where: D - actual outer diameter of the cable.

Type		Description	Applicable scope
Cu	Al
YJV	YJLV	Cu or Al conductor XLPE insulated PVC sheathed power cable	For laying indoor and outdoor, unable to bearextemal mechanical force but the tractive forceduring laying. Laying single core cable inmagnetic duct is not permissible.
YJY	YJLY	Cu or Al conductor XLPE insulated PE sheathed power cable
YJV22	YJLV22	Cu or Al conductor XLPE insulated steel tape armored PVC sheathed power cable	For laying underground, able to bear externalmechanical force, but unable to bear largepulling force.
YJV23	YJLV23	Cu or Al conductor XLPE insulated steel tape armored PE sheathed power cable
YJV32	YJLV32	Cu or Al conductor XLPE insulated steel wire armored PVC sheathed power cable	For laying underground along route withdifferent level, able to bear external mechanicalforce and moderate pulling force.
YJV33	YJLV33	Cu or Al conductor XLPE insulated steel wire armored PE sheathed power cable
YJV42	YJLV42	Cu or Al conductor XLPE insulated thick steel wire armored PVC sheathedpower cable
YJV45	YJLV45	Cu or Al conductor XLPE insulated thick steel wire armored PE sheathed powercable

Product Parameters
Detailed Photos
Product Features
Rated voltage (6-35) kV XLPE insulated power cables are suitable for use in power systems up to 35 kV and can be used in transmission systems and distribution systems as carriers of electricity.
Fire retardant/fire resistant power cables have the characteristics of ordinary plastic power cables, but also have the characteristics of not easily catching fire or delayed ignition after catching fire only within a certain range, especially for fire alarm, fire fighting facilities, emergency evacuation and other fire emergency systems for power distribution.
Halogen-free, low-smoke flame-retardant/fire-resistant power cables have the characteristics of ordinary plastic cables and ordinary flame-retardant cables, but also have the characteristics of no halogen acid gas release when the cable catches fire, less smoke, less corrosive gas generation and good flame-retardant performance, etc. They are particularly suitable for fire alarm, fire fighting facilities, emergency evacuation and other fire emergency system distribution.
Company Profile
Product Catalog
FAQ
1. How does your factory control the quality?
Factory has a quick and enthusiastic merchandisers team, strict and responsible QC team, service for many well-known brands all around the world with our high-quality products and strict.
2. Can you give me a discount?
Our policy is that the bigger the quantity, the cheaper the price, so we will quote you the best price based on your order quantity. If you have any query about the prices, contact us would see to your price issue specially.
3. How to place an order?
Select item, tell us quantity-confirm details -we quote price -give us shipping address-make proforma invoice for you-make payment.
4. Is there cheap shipping cost to import to our country?
For small order, express will be best. And for bulk order, sea ship way is best but takes much time; For urgent orders, we suggest via air to airport plus our ship partner send to your door. When we calculate the freight for you, we will choose the cheapest, safest express company. It is the freight company that asks us to pay, so we cannot make it cheaper. If you have your own agent in China, we can send the package to your agent.
5. May I visit your factory?
Sure, welcome any time. We can also pick you up at the airport and station.
Delivery Detail: 48 hours for small orders, large orders depend on quantity.

For more information about wires and cables, please feel free to contact us. Your inquiries will be replied to within 24 hours!!!
