CNC Horizontal Internal Grinding Machine for Gear Inner Hole

Product Description

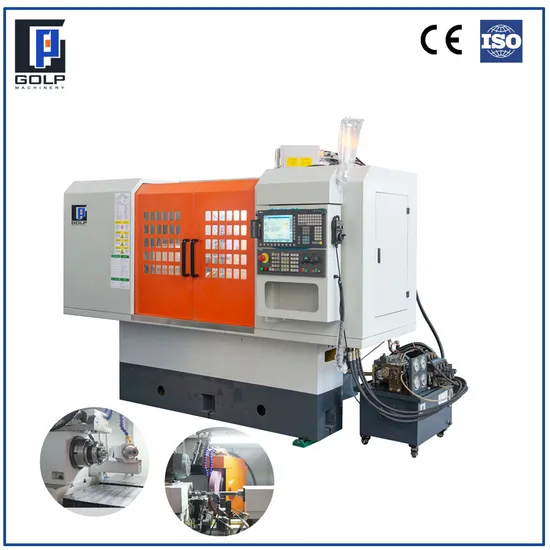

Δ This machine is a two axis (X-axis, Z-axis) CNC Internal Grinder, which is mainly used to grind the inner hole, step hole, iner end face and outer end face of the work piece. The grinding cycle is completed automatically; (with automatic feed,withdrawal , rough grinding and finegrinding); Automatic dressing of grinding wheel,automatic compensation, etc.). Δ The machine tool is fixed by the work piece box, the worktable moves left and right.and the grinding wheel frame do the back and forth fedingmovement. The movement of the worktable and grinding wheel frame is driven by the servo motor through the ball crew, both of which adoptlinear guide rails. Δ The rotation speed of work piece spindle and grinding wheel spindle are controlled by frequency converer to reaize stepless speed regulaton. Δ The machine tool adopts a front movable operation box and an independent electrical cabinet. The protective cover shell has two differentstyles of semi closed or fully closed for users optional.

Model of machine tools		GK250
The range of grinding diameter of hole(mm)		100-500
Maximum grinding depth (mm)		500
Swing diameter of work piece (mm)	Inside the shell(mm)	510
	Outside the shell (mm)	720
The maximum stroke of feeding slide(mm)		200
The maximum stroke of workbench(mm)		730
Maximum rotation angle of lather head(° )		30°
Rotating speed of work piece (r/min)		30-500stepless speed regulation
Rotating speed of grinding wheel (r/min)		2000-10000(stepless speed regulation)
Motor power of workpiece(kw)		4
Motor power of grinding wheel(kw)		5.5
Motor power of X-axis servo motor(kw)		2
Motor power of Z-axis servo motor(kw)		4
The power of oil pressure motor (kw)		0.55
Cooling motor power (kw)		0.09×2
Rated power(kw)		17.8
Maximum speed of workbench m/min		6
Grinding speed m/min		0-4
Feed speed of grinding wheel m/min		5
X-axis minimum resolution mm		0.001
Z-axis minimum resolution (mm)		0.001
Maximum load capacity of workpiece (kg)		300
Flow of cooling pump(L/min)		30
The pressure of hydraulic system (MPa)		0.4
Flow of oil pump(L/min)		25
The weight of machine tools(kg)		5600
Machine overall dimension(mm)		4000× 1900×2000
Roundness of internal hole(um)		3
Machining precision	Cylindricity of internal hole(um)	5
	Surface roughness of internal hole (um)	Ra0.63
	Roughness of end face(um)	Ra0.8

Δ Due to the continuous progress of technology, this content is for reference only, in case of any change without further notice.the technical documents signed by both parties shall prevail.
