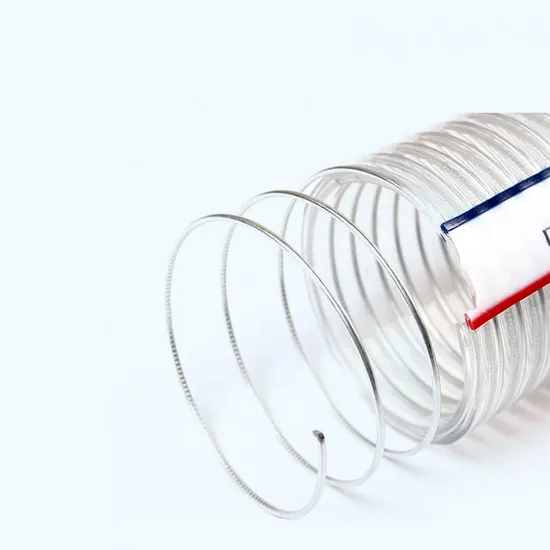

Anti-Static Good Flexibility PVC Steel Wire Reinforced Hose Pipe 1 to 4 Inch 4/5 Bar for Conveying Gas Liquid Mine Oil Suction Discharge
| US$0.50-3.00 | 1,000 Meters (MOQ) |
Basic Info.
Model NO.
pvc steel wire hose
Color
Color
Hollow
Hollow
Shape
Round
Usage
Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Product Name
PVC Steel Wire Reinforced Hose
Application
Industrial Fluid Transfer and Suction
Feature
Non Toxic
Thickness
5mm-22mm
Working Pressure
2-8 Bar
Working Temperature
-5ºC to +65ºC
Standard
ISO9001
Sample
Free Sample
MOQ
1000m
Certification
CE ISO
Transport Package
Woven Plastic Cloth Wrapped
Specification
1/4"-10"
Trademark
ET
Origin
Shandong, China
HS Code
39173900
Production Capacity
6000tons/Year
Product Description
Anti-Static Good flexibility PVC Steel Wire Reinforced Hose Pipe 1 to 4 inch 4/5 Bar for Conveying Gas Liquid Mine Oil Suction Discharge| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | weight | coil | |||
| inch | mm | mm | bar | psi | bar | psi | g/m | m |
| 1/4 | 6 | 11 | 8 | 120 | 24 | 360 | 115 | 100 |
| 5/16 | 8 | 14 | 8 | 120 | 24 | 360 | 150 | 100 |
| 3/8 | 10 | 16 | 8 | 120 | 24 | 360 | 200 | 100 |
| 1/2 | 12 | 18 | 8 | 120 | 24 | 360 | 220 | 100 |
| 5/8 | 15 | 22 | 6 | 90 | 18 | 270 | 300 | 50 |
| 3/4 | 19 | 26 | 6 | 90 | 18 | 270 | 360 | 50 |
| 1 | 25 | 33 | 5 | 75 | 16 | 240 | 540 | 50 |
| 1-1/4 | 32 | 40 | 5 | 75 | 16 | 240 | 700 | 50 |
| 1-1/2 | 38 | 48 | 5 | 75 | 15 | 225 | 1000 | 50 |
| 2 | 50 | 62 | 5 | 75 | 15 | 225 | 1600 | 50 |
| 2-1/2 | 64 | 78 | 4 | 60 | 12 | 180 | 2500 | 30 |
| 3 | 76 | 90 | 4 | 60 | 12 | 180 | 3000 | 30 |
| 3-1/2 | 90 | 106 | 4 | 60 | 12 | 180 | 4000 | 20 |
| 4 | 102 | 118 | 4 | 60 | 12 | 180 | 4500 | 20 |
| 5 | 127 | 143 | 3 | 45 | 9 | 135 | 6000 | 10 |
| 6 | 152 | 168 | 2 | 30 | 6 | 90 | 7000 | 10 |
| 8 | 202 | 224 | 2 | 30 | 6 | 90 | 12000 | 10 |
| 10 | 254 | 276 | 2 | 30 | 6 | 90 | 20000 | 10 |
