Lithium Battery Specific Inverter Solar Energy Storage System Pure Wave Inverter

Product Description

Product Description
Product Overview

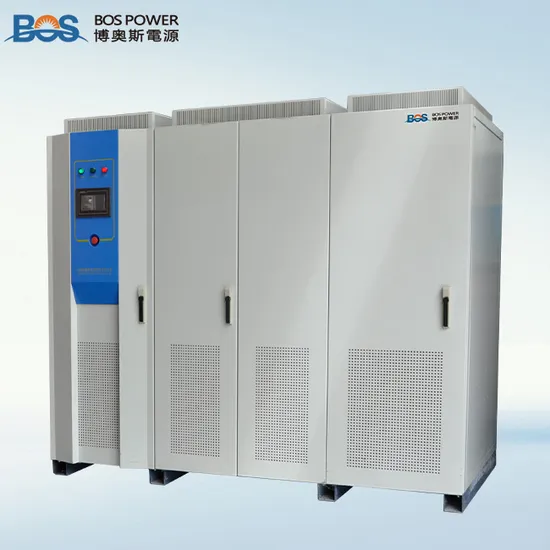

The BNSX series bidirectional energy storage inverter serves as an electrical interface between the power grid and energy storage devices, with the main function and role of achieving bidirectional energy transfer between AC power grid electricity and energy storage electricity. During discharge, the direct current energy from the energy storage device is converted into sinusoidal alternating current with the same frequency and phase as the power grid and fed into the grid. And during charging, the grid energy is converted into direct current energy and sent to the energy storage device.
Product features:
1.0V charging, dedicated to liquid flow batteries;
2.DC soft-start ,Prevent battery from being impacted;
3.It has high and low voltage ride-through ability, fast power regulation, and strong power grid adaptability;
4.Seamless switching between grid connection and off grid / active power adjustable, accept scheduling;
5.Integrated EMS makes it easy to set peak and valley period of time;
6.Equipped with PQ/VF / DC source / black start function;
7.It is suitable for a variety of energy storage application scenarios such as peak load shifting, peak regulation and frequency regulation, and auxiliary new energy grid connection.Application industry
Applied in scenarios such as assisting new energy grid connection, power frequency regulation and peak shaving, demand side response, microgrids, and users. Product Parameters

Device model	BNSX- 50KS	BNSX- 100KS	BNSX- 150KS	BNSX- 250KS	BNSX- 500KS	BNSX- 500KTL	BNSX- 630KTL
Device power	50kW	100kW	150kW	250kW	500kW	500kW	630kW
DC side parameters
DC voltage range	DC 0-800V
AC side parameters (grid-connected)
Rated voltage	AC 380V Three-phase five-wire system					AC 325/380V Three-phase five-wire system
Rated frequency	50Hz
Total current harmonic distortion	THD<4%
Power factor	≥0.99
AC side parameters (off-grid)
Rated voltage	Line voltage AC 380V
Rated frequency	50Hz
Rated current	75A	150A	228A	380A	750A	750A	950A
Output voltage distortion	<1%(Linear loads)
Overload capacity	120% 60s ,150% 10s
Efficiency
Max efficiency	94.50%
Protection features
DC input protection	possess
AC output protection	possess
Overvoltage protection	possess
Island protection	possess
Overheat protection	possess
Other
Isolation method	Power frequency isolation					No isolation
User interface	LCD touch screen
Communication interfaces	Ethernet / RS485 / CAN
High/low voltage ride-through	possess
Ingress protection	IP20
Operating temperature	- 20ºC ~ 45ºC
Relative humidity	0~95%(No condensation)
Cooling method	Forced air cooling
Working altitude	2000m(More than 2000m derating)
Size(W*D*H)(mm)	800*650 *1900	1000*1000*1900		1800*1000 *1900	2200*1000 *2060	1600*1000*1900

Company Profile
Shandong BOS Energy Technology Co., Ltd. (referred to as BOS) is a high-tech enterprise in Shandong Province specializing in the research and development, manufacturing, sales, and service of power equipment. For more than 20 years, BOS has focused on power electronic conversion technology. Committed to providing customers with the best system solutions, our products include AC/DC test power supplies, AC/DC power supplies, shore power, and new energy product lines. The production base covering an area of 20000 square meters, built in 2010, has an annual output value of over 100 million yuan. BOS is one of the most influential "leading enterprises" among domestic high-power power supply manufacturers.
BOS has multiple national patents in the field of power supply and has passed international ISO9001 quality system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification; And has successively won honors such as specialized and innovative, gazelle enterprise, and high-tech enterprise, as well as awards such as "Best Supplier of Small and Medium Power Bidirectional Energy Storage Inverters"; Establishing an energy conversion and energy storage engineering technology center; It is a member unit of the China Power Association, a member unit of the Port Science and Technology Committee, an executive director unit of the China Renewable Energy Association, and a qualified supplier for procurement by the Chinese Academy of Sciences.
Certifications
On Site Filming Of The Project
Packaging & Shipping
Our Advantages
FAQ
1.Q:Are you manufacturers?
--Yes, we have an independent factory covering an area of over 20000 square meters.
2. Q:Can the power of the product be customized?
--Yes, we can customize products according to your needs.
3.Q: Is there any guarantee for after-sales service after purchasing products from your store?
--Yes,during the warranty period, we will regularly visit customers and collect feedback information to continuously improve the quality of our company's products and services.
4.Q:How is your production management and quality control?
--Our company's production process for all products follows ISO9001, with professional operators controlling each production step. Quality inspectors also conduct regular inspections, and after each product undergoes performance testing, a comprehensive quality inspection will be conducted.
