US$15,000.00-24,300.00
|
1 Set
(MOQ)
|
Basic Info.
Certification
ISO9001, CE
Name
Wood Chips Processing Machine
Application
Recycling of Wood Log, Branches
Transport Package
20gp for Wood Chips Processing Machine
Specification
3.3 x 2.15 x 1.75m for Wood Chips Processing Machi
Trademark
HX for Wood Chips Processing Machine
Production Capacity
30 Sets/Month Wood Chips Processing Machine
Packaging & Delivery
Package Size
330.00cm * 215.00cm * 175.00cm
Package Gross Weight
6700.000kg
Product Description
Wood Chips Processing Machine main machine Photo

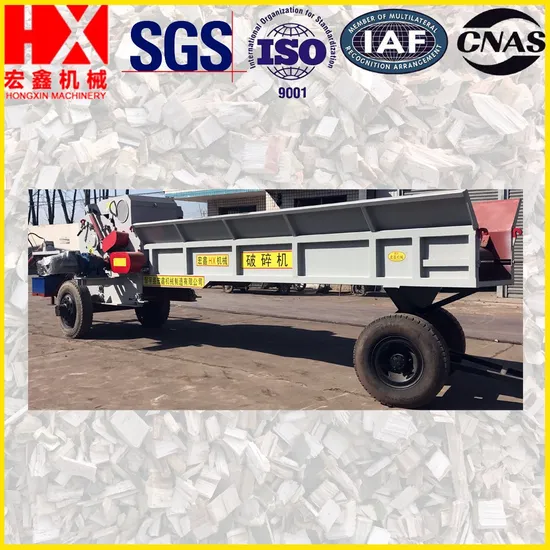

Wood Chips Processing Machine Whole set photo
Brief Introduction
Wood Chips Processing Machine is a specialized equipment for producing wood chips in wood factory, and widely used for preparing raw material in chipboard plant, fiberboard plant and paper-making plant.
Raw material of Wood Chips Processing Machine are mainly undersized log, wood cutting residue (branch, twig) and wood processing residue (slab, batten, wood core, and waste veneer), as well as non-wood material (such as waste of flax, cotton stalk, reed and bamboo.)
Wood Chips Processing Machine is an advanced wood chipper and featured by reasonable structure, easy operation, high capacity, wide usage, qualified output, safe and reliable, easy transporting and convenient maintenance.
Product Structure
Wood Chips Processing Machine is composed of engine base, knife roller, upper and below feeding mechanism, feeding conveying device, discharging conveying device, hydraulic buffer system and electrical control system.
Detailed Photos
Product Parameters
Machine name | Wood Chips Processing Machine |
Model | HX218 | HX426 | HX428 | 400A | 400B | 400C | 400D |
Rotor diameter (mm) | 800 | 650 | 800 | 650 | 650 | 650 | 650 |
Cutter quantity (piece) | 3 | 4 or 24 | 4 or 24 | 3 Or 25 | 3 Or 25 | 6 Or 25 | 6 Or 25 |
Input size (mm) | 680 x 310 | 1250 x 250 | 1250 x 310 | 680 x 420 | 680 x 420 | 1000 x 420 | 1000 x 420 |
Rotor rotation speed (rpm) | 650 | 600 | 650 | 720 | 720 | 720 | 720 |
Max material diameter (mm) | 300 | 240 | 300 | 300 | 300 | 300 | 300 |
Production capacity (TPH) | 8-10 | 10-12 | 12-15 | 8-10 | 8-10 | 10-12 | 10-12 |
Main motor power (kw) | 110 | 132 | 160 | 90 | 90 | 132 | 132 |
Feeding conveyor length (m) | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Discharge conveyor length (m) | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Weight (t) | 7 | 8.2 | 10.4 | 7 | 7.5 | 8.5 | 9 |
Company Profile
Shandong Hongxin Machinery Co., Ltd
Our company is a professional manufacturer of log debarker, wood chipper, horizontal grinder, tub grinder, hammer mill and wood pellet mill.
Our company has introduced a series of advanced equipment including CNC Lathe, CNC Milling machine, Planer, Drilling machine, Sawing machine, CNC Boring machine, Balancing machine, Coiling machine. Meanwhile, we have obtained ISO 9001, CE certificates and many patents.
With a complete understanding of the requirements of both our customer and the industry, we offer defect-free equipment and services.
Certifications
Shandong Hongxin Machinery have obtained ISO 9001, CE certificates and many patents.
