Qk1319 Lead Screw Cutting Pipe Thread CNC Lathe Machine

Product Description

Product Overview

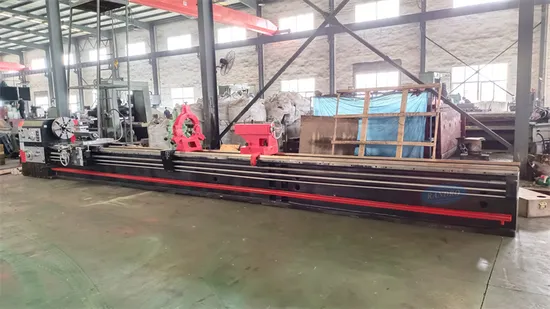

CW Horizontal Heavy Duty Lathe Machine Heavy duty horizontal lathe machine is the improving type of our heavy horizontal lathe.It is based on our long-term production experience, international advanced design methods and manufacturing technology and under the current national latest precision standards, which is the integration of electrical, automatic control, hydraulic control and modern mechanical designs of multiple disciplines and categories of precision manufacturing technology.
CW61100 CW61125 CW61160 heavy duty lathe are suitable for turning or cast iron and steel workpieces,turning of non-ferrous metal parts of big or medium sizes.It can do external cylindrical surface turning,inner hole and end face turning.It can also turn various internal and external metric,inch,module and diametrical pitch threads,the top slide can be used independently for turning of short taper.These lathes are of high power,high rigidity and wide rotating speed range,so it can be used for high speed and strong force turning. FEATURES AT A GLANCE
1.CW Heavy Duty Lathe Machine are universal lathe suitable for high-speed steel and carbide cutting tools for different materials 2. CW Heavy Duty Lathe are medium frequency hardened, and has good hardness and precision; 3. Triple support of CW Heavy Duty Lathe ensures spindle rigidity and supporting capacity; 4. CW Heavy Duty Lathe have the large speed range, and the motion is smooth and the low temperature-rising
Details Display

Manual Chuck CW Heavy Duty Lathe Standard with 3 or 4 jaw manual chuck,clients can choose different size chuck according to requirements.

The chuck is a mechanical device used to clamp a workpiece on a machine tool. A machine tool accessory for clamping and positioning the workpiece by using the radial movement of the movable jaws evenly distributed on the chuck body.
Gear Spindle Box
CW Heavy Duty Lathe Gear spindle box,mechanical change speed,strong rigidity,powerful cutting.
The machine tool gearbox is a mechanism used to change the main motion speed of the machine tool (such as the spindle speed, the number of reciprocating strokes per minute of the worktable, etc.). It can be separately installed in a box to form a part of the machine tool, or it can be installed in a box together with other mechanisms.
Tool Post
CW Heavy Duty Lathe 4 station manual tool post, tool post cover is optional,need extra cost.
Tool post is a member of a machine (as of a lathe) on which the tool carriage moves at right angles to its principal direction of travel
Quenching Guide
CW Heavy Duty Lathe Quenching guide.bigger load capacity wider bed width,more stable. Quenching lathe guide rails is a metal heat treatment process in which the guide rails are heated to an appropriate temperature and maintained for a period of time, and then immersed in a quenching medium for rapid cooling. Quenching of lathe guide rail greatly improves the service life, wear resistance and damage resistance, thereby also improving the production efficiency of lathe.
PRODUCT SPECIFICATIONS

No	Item	CW61100	CW61125	CW61160
1	Swing over bed mm	1000	1250	1640
2	Swing over carriage mm	615	865	1250
3	Max length of workpiece mm	1500/3000/5000/8000/10000
4	Max turning length	1300/2800/4800/7800/9800
5	Width of guide	755
5	Spindle nose	A2-15(8×M22)
6	Spindle bore	130
7	Taper hole of spindle	1:20/140
8	Range of spindle speed	forward:3.15~315 ; reverse:3.5~291
9	No. of longitudinal and cross	56/56
10	No. and range of metric thread	44;1~120 mm
11	Distance of centerline and tool resting plane mm	48 mm
12	Tool post swing range	±90°
13	Max travel of top slide	300 mm
14	Dia. of tailstock mm	160(6″)
15	Travel of tailstock quill mm	300(12″)

Packaging & Shipping
OUR SERVICES
01 PRE-SALES SERVICE:
We provide presales service in various forms, making investment budge, manufacturingplanning, so that customers can make a reasonable plan with less cost.
We will fist check customer's goods and goods size, then we will recommend suitablewrapping machine to 100% suitable.
We will recommend and offer machine according to customer's use and purchasebudget.
02 IN-SALE SERVICE:
We will supply each manufacturing step photo for customer checking on time.
We will prepare packing and shipment according to customer's needing in advance.
Testing the machine and making video for customer's checking.
03 AFTER-SALE SERVICE:
We will guarantee the machine quality for 2 years.
We provide free training and answer customer's question on technology in time.
Customer feedback

Company Profile
Henan Randro Machinery Equipment Co., Ltd. is an enterprise specializing in the production of CNC machine tools, lathes, machine tools, and rolling presses. Our products have passed the international ISO9001:2008 quality management system certification. We have established good relationships with customers from over 100 countries.
Main Products: The company operates various specifications of products, including cold bending forming equipment and other mechanical equipment, such as machine tools, tapping machines, slotting machines, boring machines, air hammers, gear hobbing machines, nail making machines, marking machines, etc. There are a wide variety of products, welcome everyone to visit and guide the factory!
FAQ
Q1. How to choose an appropriate machine ?
The machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.Q2. What about the delivery term?
Generally speaking, we need about 30 days to deliver the machine. If you require a short time to deliver the machine, we can make it in short time due to a large number of spare parts we stored.Q3. Why are the machine prices higher than others?
We insist quality drives the value for our customers. From each step of the machine producing till the choosing of the electric elements brands, We all take it very seriously.Q4. Do you have after-sales support?
We have a professional after-sales team. If required, we can send our engineers to go to the customers' site to guide to the machine installation and debugging.Q5. How to get a quotation?
1. Please tell we what kind of raw material and the max. thickness, and the profiles designs. Then I can quote you accordingly.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
