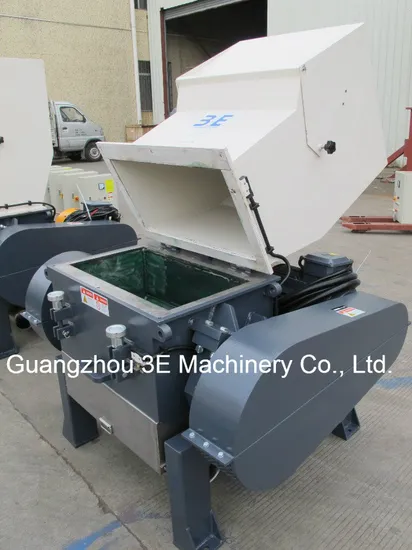

Small Size Granulator/Plastic Granulator/Plastic Crusher

Product Description

3E MACHINERY's PC26-PC42 series granulator is our conventional range of small-medium size granulators. The body of the machine is made of welded by rigid steel structure. Suitable for processing a wide range of materials including: Plastic lump, sheet, plastic film, paper, rubber, tire, metal, etc.
It's heavy duty, high speed precision granulation machine designed for the rapid size reduction of various types of material in a single pass. The material is cut cleanly between the rotor and stator knives, and cut down to a homogenous regrind size determined by the screen holes on the fitted screen.
Application
Specification

Item Model	PC2660	PC3260	PC3280	PC4280	PC42100	PC42120
Dimension L/W/H(mm)	1483×1328×1740	1486×1368×1711	1586×1568×1814	1770×1642×2425	1770×1842×2425	1760×2221×2530
Cutting Chamber C/D(mm)	634×437	634×475	834×475	834×540	1034×540	1234×425
Height of discharge port E(mm)	1567	1269	1369	1842	1842	1947
Rotor Diameter (mm)	Φ260	Φ320	Φ320	Φ420	Φ420	Φ420
Main Shaft Speed (r/min)	584	444	627	466	466	462
Screen Mesh (mm)	Φ8	Φ12	Φ12	Φ12	Φ12	Φ12
Rotor-knives (PCS)	3×2	3×2	3×2	3×2	3×2	3×2
Stator-knives (PCS)	2×2	1×2	2×2	2×2	2×2	2×2
Main Motor Power (kw)	15	15	22	37	45	75
Weight (kg)	960	1470	1730	2800	3230	3650

Features
Company profile
3E GROUP is an integrated company specialized in developing, manufacturing, distributing and providing recycling machinery solutions. Our main entity " Guangzhou 3E Machinery CO. Ltd" founded in 2003, has currently become focusing on "Shredding" and "Recycling industry" modern enterprise.
Technology is the core-competitiveness of 3E Group, we are active in the recycling market and keep cooperating with well-known enterprises in Europe and the USA. Meanwhile, 3E Group keeps on improving and innovating, so far, we awarded 18utility model patents and 3 invention patents.
"Efficient Economical & Environmental" is the traditional idea of 3E Group. With its own intellectual property and solid technological team, our products have been already sold to over 90 regions and countries which include the USA, Europe, Australia, Southeast Asia, Latin America, and Middle East.
Our service
1. Pre-sale support
3E Machinery consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
On-site inspection.
2. After-sale service
3E's skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a 3E technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
3E holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3. Technical support
3E provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
Regular return visit.
Certification
3E MACHINERY was awarded 18utility model patents and 3 invention patents.
