Hot Rolling Copper Rod Continuous Casting and Rolling Line

Product Description

Electrolytic Copper Continuous Casting and Rolling Line
1.Description:
This production line adopts the advanced fire refining technology to produce the ¢8MM bright low-oxygen copper rod which is meet the international standards in the continuous casting line.
The production line is composed by the melting furnace, holding furnace, five wheel continuous casting machine, rolling shear machine, straightening machine, trimming machine, continuous mill machine, lubrication system, cooling deoxidization system, take-up rod device and electrical control system etc.
The crystallization wheel adopts four cooling and the ingot casting is dense and uniform.
The form of rolling mill is two rolls system. Provide the production line which output capacity is 12 tons, 18 tons and 25 tons per hour.
All electrical control system is advanced and adopts programmable logic controller (PLC) + human machine interface (touch screen) control, The electrical control system controls the whole line linkage and monitors the running status.

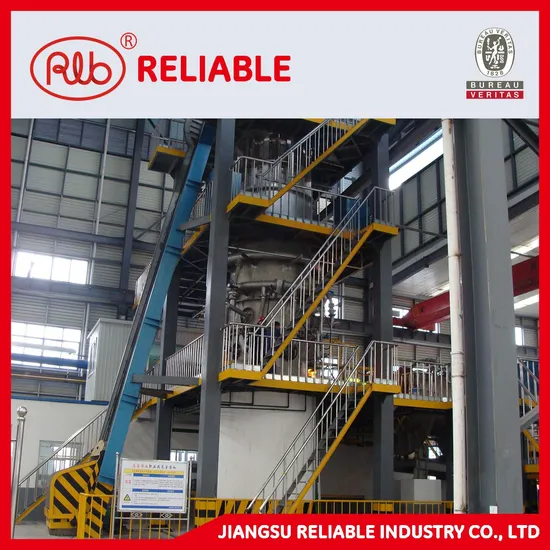

2, Equipment Pictures

3.Technical Parameter

Type	Cu Rod Diameter	Rolling Pass	(T/H) Capacity	Rolling Mode	(T/H) Melting Furnace Output	(T) Holding Furnace Capacity	Furnace Energy
12T	8	12	12-15	2	16	10	Natural Gas
18T	8	12	18	2	20	10
25T	8	13	20-25	2	28	15

4. Layout:
5.Application:
Can select two - roll, three - roll or two - roll + three - roll combination mill according to capacity
Can be equipped with on - line tight winding device;
