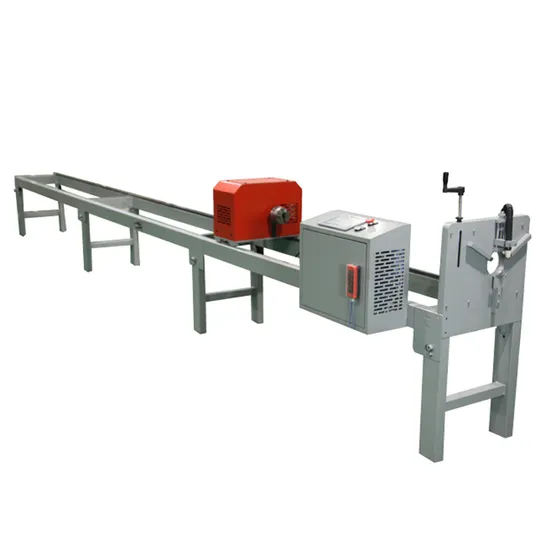

Simple Automatic Feeding 2m4m6m Diameter17-97mm Round Stainless Steel Pipe Plasma Cutting Machine
| US$4,150.00 | 1 Set (MOQ) |
Basic Info.
Customized
Customized
Layout
Horizontal
Cutting Material
Carbon Steel, Iron, Metal Alloy, Stainless Steel
Automatic Grade
Automatic
Power Source
Pneumatic
Cutting Mode
Plasma Cutting
Product Name
Plasma Cutting Machine
Transport Package
Wooden Case
Specification
17-97mm
Trademark
soar
Origin
China
HS Code
8515190090
Production Capacity
10/1month
Product Description
Product Description1Can split the machine into different lengths according to the tube length
2 Automatic tube feeding, fast cutting speed
3 Portable and can be moved
4 with the function of blowing off slag
5 Suitable for cutting staircase handrail
| Specification | |
| The Suitable pipe to cut | Pipe material: carbon steel, stainless steel, iron pipe pipe diameter: round tube φ19-97mm thickness within 3mm (According to the plasma size) Effective stroke: ≥6100mm |
| Model | SP-97(6000) |
| Mane | Round pipe intersecting cutting machine |
| Measure | 6750*550*1350mm(Subject to the actual object) |
| Weight | 150KG (Subject to the actual object) |
| Power | 220V(Control part) |
| Output voltage | 24V |
| Accuracy of positioning | ±0.1mm |
| Rack type | 2M precision straight teeth |
| Mode of cutting | plasma |
| Cutting torch | Non-contact P80 (plasma) |
| Air supply | It should be brought by oneself (≥0.8MPa) |
| Pipe of frame size | 50x100mm |
| Main component Settings and parameters | |
| Electric control unit | chint |
| Control system | Digital control system software |
| Three jaw chuck | Manual and pneumatic |
| Auxiliary support system | Pneumatic takeoff and landing support frame |
| System of power | £stepper motor |
| Speed of movement | 10-6000mm/min(can be adjusted according to processing requirements) |
| Speed of cutting | 10-3000mm/min(can be adjusted according to processing requirements) |
| Chuck speed | 1-4 seconds/turn |
| Bear weight of single pipe | 30KG(Max) |
Note:quoation incoude plasma 120A, no incouding the loading frame,if need this too,
will update price
