Extrusion Plastic Film Extruder Blowing Machine PE Film Blown Machines
| US$12,500.00-16,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
MD-H2
Type
PE Film Blowing Machine
Raw Material
PE
Maximum Folding Width of Film
600mm*2
Screw Diameter
65mm
Automation
Automatic
Computerized
Computerized
Machine Weight
2.5t
Certification
CE, ISO9001:2008
Output
70kgs/Hr
Gear Box
200
Die Head
60/80mm*2
Machine Height
4.3m
"Suitable Material"
HDPE/LDPE/LLDPE
Film Thickness
HD 0.008-0.08mm
Transport Package
Film Packing
Specification
CE, ISO, SGS
Trademark
MINGDE
Origin
Zhejiang Wenzhou
HS Code
84778000
Production Capacity
70kgs/Hr
Product Description

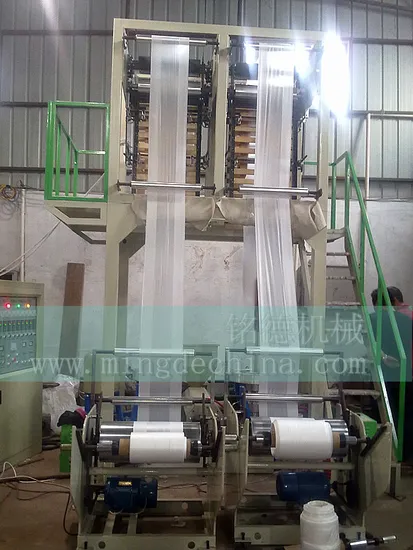

Single Screw Double-head Film Blowing Machine1. High efficiency with double head film blowing machine
2. High quality
It is suitable for (HDPE), (LDPE) (LLDPE), which is widely used for packing foodstuff, garment, textile, daily-use articles and industrial products etc.
Details:
1, The machine adopts single screw to extrude the material, two die heads to blow the film.
2, The screw stem and cylinder are made of 38CRMOALA high quality alloy steel after fine finishing and nitride treatment, which has high hardness, strong resistance to corrosion, durable service.
3, The die head is plated with hard chrome, of screw mandrel type structure with even and smooth discharging, the blown plastic film has fine finishing; The blower is of labyrinth structure with even air output.
The coiling unit adopts pressure friction rewinding or center rewinding, which is driven by torque motor, with even and smooth rewinding and easy roll changing.
4. Optional equipment
Double winder
Rotary die head
Auto loader
Double lip air ring
Air shaft
Corona treatment
Fast screen changer
Air compressor
All roller pneumatic type
| Model | MD-H2-55 | MD-H2-65 |
| Suitable Material | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE |
| Max Film Width(mm) | 500*2 | 600*2 |
| Film Thickness(mm) | HD:0.008-0.08 | HD:0.008-0.08 |
| Max Extrusion Output HD | 50kg/hr | 70kg/hr |
| Extrusion Unit | ||
| Gear Box | 173 | 200 |
| Screw Diameter(mm) | φ55 | φ65 |
| Screw's Material | 38 CRMOALA | 38 CRMOALA |
| Barrel's Material | 38 CRMOALA | 38 CRMOALA |
| Barrel's Cooling Fan | 250W*2 | 370W*2 |
| Thermo Control (zone) | 3 | 4 |
| Driving Motor (kw) | 22 | 30 |
| Extrusion Die | ||
| Die Size (mm) | HD:φ50/60*2 | HD:φ50/60*2 |
| Screen changer | Standard manual | Standard manual |
| Thermo Control(zone) | 2*2 | 2*2 |
| Air Ring | φ620*2 | φ620*2 |
| Cooling Blower(kw) | 1.5 | 2.2 |
| Center steady stick | 2 PCS | 2 PCS |
| Take-up Unit | ||
| Roller Width(mm) | φ138*550 | φ138*650 |
| Embossing roller width | 450mm | 550mm |
| Take-UP Motor (kw) | 0.75*2 | 1.1*2 |
| Take-UP Speed(M/min) | 10-60 | 10-60 |
| Height adjustable type | 700mm | 700mm |
| Winding Unit | ||
| Type of Winder | Surface friction single winder | Surface friction single winder |
| Roller Width (mm) | 600 | 700 |
| Winding Motor(KW) | 6 | 6 |
| Winding Speed(M/min) | 10-60 | 10-60 |
| Voltage | 380V/50HZ/3PHASE | 380V/50HZ/3PHASE |
| Cover Dimensins | 5*3.2*4.3m | 5.5*3.4*4.3m |
