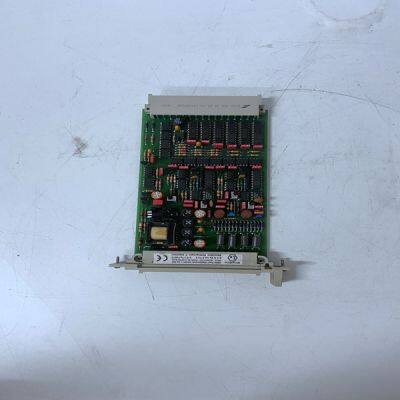

HIMA F6705

Product Details

Product Description

Product Description
Brand:HIMA
Type:F6705
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
The CI871 unit is in the process of configuration. If the condition persist, and no other unit LED on the CEX-Bus is ON: • Check that a valid hardware configuration including the CI871 is downloaded to the controller. • Check the CEX-Bus fuse inside the PM8xx processor unit. • Initiate a reset signal (INIT) from the PM8xx processor unit. • Replace the CI871 unit. F(ault) LED is ON The CI871 unit is in the process of being restarted. Wait until the restart operation is complete. Replace unit if the condition persists. RxTx1/RxTx2 LED is OFF Reception and transmission of I/O data does not occur at the respective Ethernet channels. RxTx1/RxTx2 LED is flashing Reception and transmission of I/O data occurs normally at the respective Ethernet channels. PRIM is OFF The CI871 is not started by the application. PRIM is ON The CI871 is started by the application. DUAL is OFF Default, as no redundancy is supported with PROFINET IO.
Possible Causes, and Corrective Actions (for faults) Both R(un) and F(ault) LED's are OFF Possible Cause 1: The CI872 module is connected to the controller and the configuration is not downloaded to the controller for that position. Corrective Action 1: Ensure that the CI872 module is configured in the Hardware Tree (in the Control Builder) for that position, and that the configuration is downloaded to controller. Possible Cause 2: The CI872 module is just powered up or it is being configured and downloaded. Corrective Action 2: Allow time for the module to initialize. Corrective Action 3: If the indication persists after performing the corrective actions 1 and 2, then one of the following corrective actions is recommended: • Remove and insert the CI872 module to the CEX-Bus and allow time for it to initialize. • If the CEX-Bus already contains other communication modules and all the LED's on those modules are OFF, or if this CI872 is the only module on the CEX-Bus, then check the CEX-Bus fuse inside the PM86x Processor Unit. Corrective Action 4: If the indication still persists after performing the corrective actions 1 to 3, replace the CI872 module.
