Hot Sale Plastic Water Tank Making Rotomolding Shuttle Machine Fish Box Rotomolding Make Machine

Product Description

Product Introduction

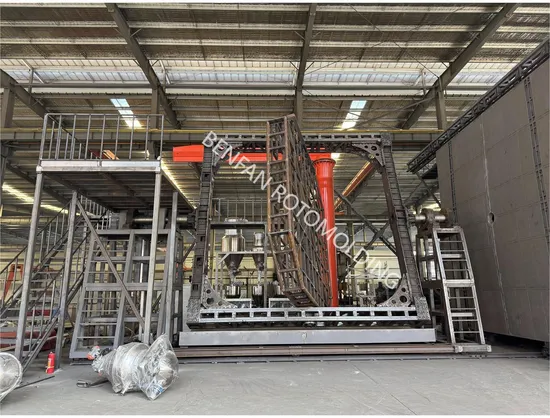

The shuttle type rotational molding machine is equipped with two arms. One arm can be used for mold disassembly and assembly, while the other arm can also be used for continuous production in the oven. It occupies a small area and is a practical machine.
Mechanical part:
·The equipment assembly adopts modular design, which can be quickly installed.
·A cylindrical oven with low energy consumption and high efficiency.
·The main shaft is thickened , and the gearbox directly drives the main shaft to avoid shaking.
·The internally main shaft installed with an external ф Within 27 ф 21 breathable tubes that can pass through a large volume of air.
Oven:
·The oven temperature has abolished the previous two-stage (high/low fire) heating method and adopts real-time monitoring, using the ratio control valve on the burner for fine tuning.
·The temperature inside the cylindrical oven is uniform, and hot air is blown into the oven through a stainless steel vortex fan below the oven, and then flows into the oven through the top suction port for reuse.
·Lower air outlet and upper circulation, accumulated material not catching fire.
·2mm thick plate inside the drying channel, durable and long-lasting.
Combustion system:
·Optional combustion engine (domestically produced Reillo, domestically produced Weiru, German Weishaupt, and American Maxon),
·The fuel can be natural gas, liquefied gas, or diesel.
Control system:
PLC system: can choose Delta system or Siemens system, with standardized wiring and direct signal to control cabinet,
Reduce the delay and interference generated by wireless transmission.
Heating program: Each arm can be individually set with three different heating temperatures, heating time, internal and external shaft speeds, and circulating air volume.
Cooling function: cooling time, cooling delay time, water mist (optional).
Storage function: Store the production parameters of the corresponding product.
Spindle and countershaft remote control: wireless remote control with rotating arm, convenient for mold disassembly and assembly (optional).
Benfan rotomolding machine advantage:
1. It only takes 3mins. from room temperature increase to 250 to 280 degree in oven
2. Arm is made of special alloy material which is good load
3. Full gear transmission, high efficiency
4. Full automatic operation,prognsis equipment trouble in advance and solve it in time.
5. Heavy duty oven and energy saving
6. Loading and unloading easy for mould
7. Special deep cavity heating technical, suitable for complicated product
8. Internet remote control (if the machine has problem in your factory, we can solve the problem through internet)
9. PLC and Motors are Siemens brand from German,Burner is RIELLO from Italy,Bearing is NSK from Japan, all electrial compenents are using Schneider brand.
10. Big computer screen, bob-weight system, special made motor, thermostability sealing arm head etc
11. Use circle oven, it is more uniform heat distribution on the mold, that means it is good for product making and also more energy saving.
Technical parameters
Quick Details
Benfan Machinery Co., Ltd profiles
Zhejiang benfan Machinery Co., Ltd. is a comprehensive company specializing in the R & D, manufacturing and sales of rotational molding equipment and rotational molding products. It has a number of patents in the industry and has always been in a leading position in China.
Zhejiang benfan Machinery Co., Ltd. is located in Yuyue Town, Deqing County, Huzhou City. The company was established in 2010 with a registered capital of 30 million and more than 200 employees. The company's headquarters covers an area of 23000 square meters and a construction area of more than 65000 square meters. It has multiple production lines and adopts hierarchical management, so as to realize the assembly line operation from raw materials to finished products, and achieve efficient production while ensuring product quality.

The branch covers an area of 5000 square meters and is specially used for equipment R & D. the company has a strong technical R & D team composed of senior engineers, design engineers and assistant engineers in plastics, machinery, automatic control and other industries.
FAQ
------------------------------------------------------------------------
Q1:What is rotomolding process?
A:The rotational molding process is quite simple: A hollow mold is filled with powdered plastic resin. The mold begins rotating bi-axially and is transferred into an oven. The mold continues to rotate as the resin melts and coats the walls of the mold. The mold is cooled until the resin hardens into the desired shape.
Q2:What materials are used in rotational Moulding?
A: Rotomolding Materials Include: Linear Low Density Polyethylene (LLDPE) Medium Density Polyethylene (MDPE) High Density Polyethylene (HDPE) Low Density Polyethylene (LDPE) Cross Link Polyethylene (XLPE) EVA Co-polymer (EVA) Polyvinylchloride (PVC) Nylon.
Q3:How many types of rotational Moulding are there?
A:The types of rotational molding equipment are turret machines, shuttle machines, rock and roll machines, and open-flame machines.
Q4:Whats your companys' main products?
A:Our company is specialized in the rotational molding machines, moulds,Ice cooler box .
Q5. What is your delivery time?
A:Usually within 60 working days after sign contract and upon receipt of deposit TT transfer.
Q6. What is your payment terms?
A:50% deposit TT transfer after sign contract, and balance 50% after inspection before shipment.
Q7. How about your warrant and after-sale services?
A:All equipment unit are service one year warranty,
For electrical motor, Inverter, and PLC, we offer warranty for 18 months.
Q8. Do you test all your machine before delivery?
A: Yes, we test 100% of machine by our engineers before leave our company.
Q9. How to install and trial run when machine arrive customer's factory?
A: Due to epidemic, we could not send our technician abroad, So, now, all the
exporting equipment are designed with module function, The buyer can install the equipment
with our installation instruction easier.
If the client insists to send the technician for machine installation, they will need to pay the travel fee and accommodation fee, and labor cost USD 100 for one person in one day.
Welcome to enquiry us! Rotate your business,Snowball your wealth!
