Rice Grain Loader Sucking Conveyor Grain Suction Machine Pneumatic Conveyor PVC

Product Description

Pneumatic Conveyor, Grain Sucking Conveyor, Grain Unload Conveyor
The function of pneumatic vacuum grain conveyor
Pneumatic vacuum grain conveyor can be used to convey granular materials horizontally, slantly and vertically such as rice, wheat, corn, soybean, sorghum, barley malt, plastic pellets, chips, resins and other granular.This kind of equipment is compact and flexible. It can loading and unloading the material quickly and easily
The feature and advantage of pneumatic grain conveyor
Characteristics of simple structure, light weight, small volume, strong sealing, convenient installation and maintenance.It can not only horizontal conveying, can also be tilted or vertical transmission;Can multipoint feeding, can also be a multipoint discharge, conveyor process arrangement is more flexible.Because the shell is closed, it in conveying to float in the sky of, toxic, explosive materials, high temperature, to improve the operating conditions of workers and prevent environmental pollution and so on has the outstanding advantages
Main techncial parameter

Model	SR-5	SR-10	SR-15	SR-20	SR-25
Fan power (kw)	7.5	11	15	22	25
Air-lock valve (kw)	0.75	0.75	1.1	1.1	1.5
Power (kw)	8.25	11.75	16.1	23.1	26.5
Air flow (m³/h)	800	1000	1600	1800	1800
Fan pressure (mmH20)	1500	1500	1600	2200	2400
Max horizontal distance (m)	30	50	70	100	100
Conveying distance (m)	3	10	15	20	20
Lift head (m)	5	12	18	20	20
Capacity (t)	5	10	20	30	23
Feeding dia (mm)	124	150	150	160	160
Discharging dia (mm)	100	124	150	160	160
Dimension (cm)	178x100x150	178x106x155	208x122x180	208x160x180	228x131x275
Weight (kg)	400	465	530	620	795

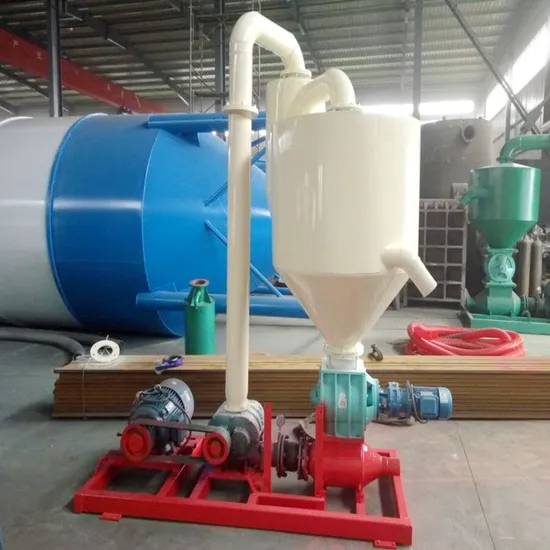

PVC conveyor

Gasoline type vehicle-mounted grain coveyor machine
Model	KQ-2	KQ-3	KQ-4	KQ-5		KQ-10	KQ-15	KQ-20
Capacity(t/h)	1~2	2~4	3~5	5~8		8~14	15~18	18~20
Horse power(hp)	2.3	3.2	5.5	6.5		8.8	11	13
Pipe diameter(mm)	100	100	100	120		120	140	140
Max flat conveying distance(m)	10	10	20	20		25	25	30
Pipe length(m)	6	6	6	6		6	6	6
Motor grain conveyor machine
Model	KD-2	KD-3	KD-4		KD-5	KD-10	KD-15	KD-20
Capacity(t/h)	1~2	2~4	3~5		5~10	10~15	12~20	15~25
Power(kw)	1.5	2.2	3		5	7.5	11	15
Pipe diameter(mm)	100	100	100		140	140	140	160
Max flat conveying distance(m)	10	10	20		20	25	25	30
Pipe length(m)	6	6	6		6	6	6	6

Packing and shiping 1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
