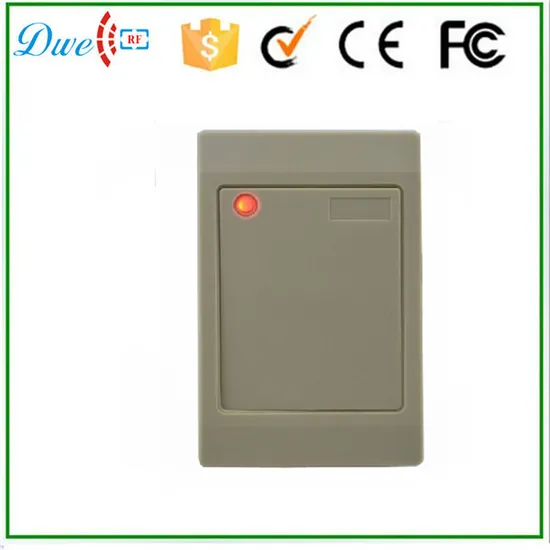

Factory Price 12V Weigand 26 Waterproof IP65 RFID Em-ID 125kHz Proximity Access Control Reader

Product Description

Free Shipping EM-ID125khz Weigand 26 Waterproof Rfid Access Control Rfid Reader
What is the Specifications of our Readers? Less than 0.2 second Response Speed Less than 0.5 seconds Proximity Time Distance 2-15cm Proximity Range Support EM-ID 125Khz card or keyfob Built-in Antenna Built-in LED (Double Color LED) Built-in Loud Speaker (Buzzer) DC 12V Working Voltage,70mA Working Current 100 Meters Communication Distance Real Time Data Transfer Ivory White Color PVC Case Material (Black Resin for Water-Proof Function) 123.5mm*55mm*22.5mm
Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection

Red DC 12V
Black GND
Green D0
White D1
Blue LED
Yellow BEEP
Grey WG26/34

Packing list

1* rfid reader

Remarks: The package do not including any screws .


Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply.
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND.
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires.
Application
Certification
Wire diagram
