CNC Gear Hobbing Machine for Processing Worm Gear Spure Gear and Helical Gear
| US$10,000.00-155,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MLT-YK3150H
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Gear Hobbing
Movement Method
Point to Point Control
Control Method
Open-Loop Control
Numerical Control
NC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Maximal Diameter
500mm
Minimum Module
0.5mm
Maximal Module
5mm
Maximal Length
350mm
Minimum Teeth Number
3
Transport Package
Wooden Case
Specification
3200mmx3000mmx3100mm
Trademark
MLTOR
Origin
China
Production Capacity
10000/Year
Product Description
Direct drive high speed CNC 5-axis gear hobbing machine for 0.5mm to 5mm module
Advantage: 1.Integrated chip conveyor design to save space
2.Process cylindrical, helical and small taper drum gears, which can easily realize 45 angle tooth profile processing.
3.High speed directly driven servo motor equips with B and C axis, increase machining precision and machining efficiency a lot
4.Main casting of machine bed and column are made of Mehana high-strength structure and equipped with rectangular large-surface plastic-coated lead rail.The structure is compact, dynamic and static.
5.Machine's driven chain is short to ensure precision, which can reach Grade 6
6.Spindle adopts high-power servo motor, which can realize constant torque stepless speed change within the rated speed range.
Machine Parameter Description
| Description | Parameter | Unit | ||
| Processing capacity | Coordinate Axis Number | 5 | axis | |
| Processing gear type | spur gear,helical gear, worm wheel, spline | |||
| Procision | Mass Production Grade 7 (GB/T10095-2008) | |||
| Workpiece | Maximal diameter | 500 | mm | |
| Maximal cylindrical helical gear diameter | 370 (Helix angle 30°) 250 (Helix angle 45°) | mm | ||
| Minimum module | 0.5 | mm | ||
| Maximal module | 5 | mm | ||
| Maximal face width | 350 | mm | ||
| Teeth range | ≥10 | teeth | ||
| Tool | Maximal rotating speed | 1000 | r/min | |
| Maximal tool length | 120 | mm | ||
| Maximal hob diameter | 120 | mm | ||
| Tool arbor diameter | 22,27,32 | mm | ||
| Tool procision accuracy | ≤10 | mm | ||
| Hob shifting | Automatic | |||
| Hob shifting travel | 150 | mm | ||
| Spindle | Z-slid travel | 500 | mm | |
| Hob head swivel angle | ±45 | ° | ||
| Turntable | Z-slide travel | 180 | mm | |
| Turntable diameter | 150 | mm | ||
| Turntable maximal rpm | 240 | r/min | ||
| Power | Main motor power | 15 | KW | |
| Total power | 28.5 | KW | ||
| Size&Weight | Floor space | 2200x2300x2800 | mm | |
| Machine weight | 3000 | kg | ||

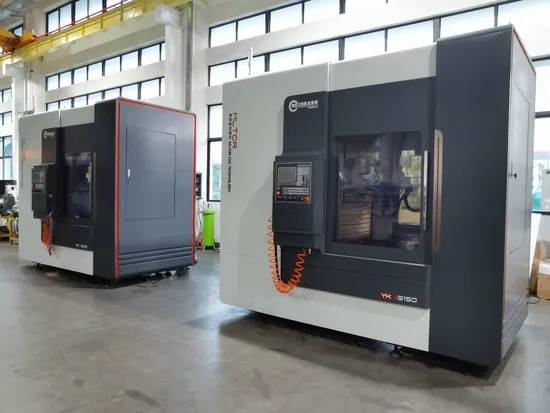

The photos of machine
Processing gear by this machine
