Quality Automatic Liquid Oil Cream Bottle Filling Capping Labeling Line

Product Description

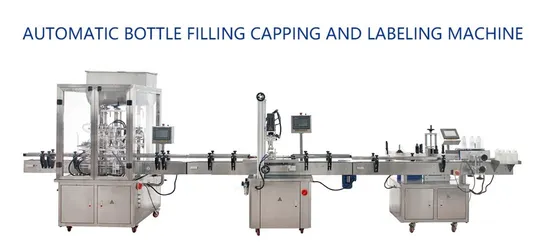

Quality Automatic Liquid Oil Cream Bottle Filling Capping Labeling Line
Product Description
Suitable for different viscosity of water agent and cream products, widely used in daily chemical, food medicine, oil and other industries.
The cream automatic filling, capping and labeling line adopts the electrical and pneumatic components of the fatal brand, with low failure rate, stable and reliable performance and long service life;
Introduce a complete set of foreign filling technology, integrating motor and pneumatic, with reasonable design, good performance and accurate filling;
The material contact part is made of 316L stainless steel, which is corrosion-resistant and fully complies with GMP standards;
Cream automatic filling, capping and labeling line, and the filling nozzle is equipped with an anti-drip device to ensure that the filling is free of wire drawing and no dripping;
Using programming control (PLC) human-machine interface (HMI) technology and imported photoelectric tracking switch, it can accurately identify the filling and positioning status, realize filling with bottles, and no filling if there are no bottles and few bottles, and has a counting function at the same time.
* The function of bottle counting;
* Unique design and precise measurement;
* Easily disassembled and cleaned;
* Adjustable filling method;
* Automatic suction device;
* Can be filled many times and cleaned automatically;
* Lack of bottles, no bottles automatically stop filling;
Product Parameters
Filling machine:

Filling nozzle(can be customized) (max can reach 24 nozzles)	Filling volume & Filling capacity(bottles/min)			Machine size (mm)
	50-500ml	100-1000ml	500-5000ml
Two nozzles	30-45	30-40	25-40	3200*1200*2000
Four nozzles	50-65	40-45	45-55	3900*1365*2000
Filling accuracy	±0.5ml	Min bottle diameter		Φ40mm
Hopper volume	200-350L	Bottle width		55-99mm
Work pressure	0.6-0.8Mpa	Bottle height		90-180mm
Voltage	220/380V 50Hz	Feeding method		Lifting/screw/pump feeding

Capping machine:

Model	JF-XGJ(S)
Voltage	AC220V 50/60Hz
Servo motor power	750W (INOVANCE)
Lifting motor power	60W (ZD)
Synchronous belt rotating motor power	90W*2(ZD)
Rated speed	3000rpm
Maximum speed	5200rpm
Rated torque	2.39NM
Bottle height	35-300mm
Cap diameter	18-80mm
Working speed	40-90bottles/min
Conveyor belt length	2m
Machine size(L*W*H)	2000*800*1700mm
Machine weight	About 150kgs

Round Bottle Labeling machine:

Model	MT-200
Labeling precision	±1mm (depending on the bottle degree, perpendicular round)
Poster speed	25-60pcs/min(related to product size)
Bottle diameter	Ø20mm-Ø90mm;(can be customized according to product size)
Label size	L:20mm-300mm W:20mm-170mm
Machine size	About 1950mm*1200mm*1530mm
Voltage	220V/50HZ;
Machine weight	About 200Kg
Applicable label inner diameter	Ø76mm
Applicable label outer diameter	Ø300mm

Detailed Photos
Related products
Customizable service
Customer project
Packaging & Shipping
We will packs all of the machine and parts in the firm case that suitable for shipping.
