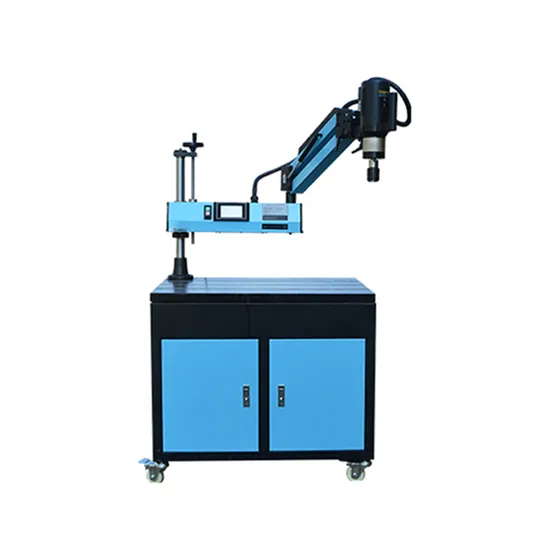

Flex Electric Tapping Arm Servo Metal M3-M16 Tapping Machine
| US$100.00-1,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M3-M16 M6-M24 M6-M30 M6-M36 M12-M48
Structure
Mill Drilling Machine
Layout
Vertical/Horizontal/Universal
Number of Shaft
3
Automatic Grade
Manual and Automatic
Precision
High Precision
Condition
New
Control Panel
Touch Screen
Working Diameter
1m-1.3m
Motor Power
220V/600W 220V/1200W
Speed
0-312rpm
Chuck
8PCS 9PCS 11PCS
Transport Package
Wooden Packing
Specification
30KG
Origin
China
Production Capacity
5000
Product Description
| TYPE | Electric M3-M16 | Electric M6-M24 | Electric M6-M30 | Electric M6-M36 | Electric M12-M48 |
| APPLICABLE THREAD | M3-M16 | M6-M24 | M6-M30 | M6-M36 | M12-M48 |
| CONTROL PANEL | Touch screen | Touch screen | Touch screen | Touch screen | Touch screen |
| WORKING ANGLE | Vertical | Vertical | Vertical | Vertical | Vertical |
| Universal | Universal | Universal | Universal | Universal | |
| WORKING MODE | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal |
| Universal | Universal | Universal | Universal | Universal | |
| WORKING DIAMETER | 1M | 1.2M | 1.2M | 1.3M | 1.3M |
| MOTOR POWER | 220V/600W | 220V/1200W | 220V/1200W | 220V/1200W | 220V/1200W |
| SPEED | 0-312rpm | 0-200rpm | 0-200rpm | 0-150rpm | 0-250rpm |
| CHUCK | 8PCS | 8PCS | 9PCS | 11PCS | 11PCS |
| NET WEIGHT | 30KG | 48KG | 48KG | 55KG | 100KG |
| OPTIONAL ACCESSORIES: 600x900 Movable worktable, 600x900 Movable worktable with drawer,600kgs permanent magnetic chuck, 1000kgs permanent magnetic chuck,6 inch angle grip vise. | |||||
1. This machine adopts servo drive control with intelligent torque protection;
2. The machine uses a variety of processes to use mold castings, which have strong overall rigidity, durability and no deformation, and beautiful appearance;
3. The high-definition touch screen is simple and flexible to operate. It can realize vertical and horizontal work for complex and heavy workpieces, quickly locate and process accurately;
4. There are three working modes of infinitely variable speed, manual, automatic and linkage for you to choose
