Disposable Satble Speed Shoe Cover Machine

Product Description

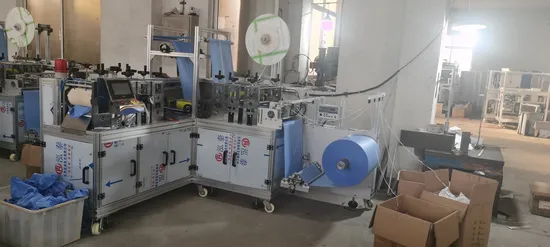

ALT-PP400 disposable shoe cover machine
A Process Description :
Elastic, Non-woven fabric feeding--Edge Folding--Shaping--Welding
--Cutting
B Technical Parameter :
Supply Power: AC380V or 220V
Power : 5.5kw
Speed : 60-100pcs/minute
Dimensions :2000*1825*1700mm
Net Weight:650kg
Ultrasonic : 3sets Motor: 1set 3.Touch screen: 1set
4.Inverter: 1set
5.PLC: 1set
C Operating Program
1.Adjust the non-woven fabric plate and tension equipment.
2.Pull the non-woven fabrics into folding and welding manually.
3.Elastic feeding and pull into the Ultrasonic welding.
4.Open the main machine slowly, then start to welding and cutting.
D Maintenance
1.Please start the ultrasonic welding equipment before open the main machine to avoid the superimposed load damage the ultrasonic equipment.
2.Adjust the ultrasonic mould pressure,too big may burnout it,too small may press unwell.
3.The pulling should be in balance when elastic feeding, or it may follding unwell.
Suggestion: Non-woven shoes and PE shoes can't made by the same machine,it's two different. 2.It can replace the mould to make different size of shoes.(The shoe size is according to customers demand and then we make moulds for you.)
Payment: After 50% of the total value is paid in advance by (T/T), The left 50%
should be paid by (T/T) after you check up the finished machine. And the cargo
will be delivered after all the payment arrives at our account.
Package: Wooden packing
Warrant term: 1 year
Size:150*400mm(W*L) (when extension)
Material roll width :360mm
Material density:25-50gsm, we use 30gsm always
Elastic:4mm width double elastic
Packing size: 2200*2000*1900mm
Delivery time :20-25days after confirm the order
