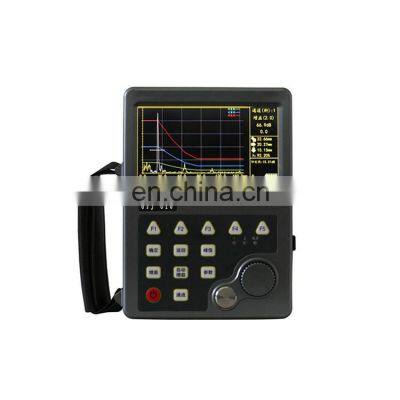

U600 portable Digital ultrasonic NDT flaw detector

Product Description

Product Description
Product DescriptionLovely-U600 Ultrasonic flaw detector can quickly, non-destructively and accurately detect various defects (cracks, inclusions, blowhole etc.) inside the workpiece. The product is unique in design, easy to operate and durable. It adopts all- Chinese true color liquid crystal display. Different color schemes can be selected according to the environment. The brightness of liquid crystal can be adjusted under strong outdoor light. Master-slave menu design, with digital shuttle wheel, easy to operate, leading technology. It is widely used in aerospace, railway transportation, building steel structure, boiler pressure vessel and other fields. It is a necessary professional precision instrument for detect detection, quality, control, in-service safety monitoring and life evaluation in railway, shipbuilding, metallurgy, chemical industry, petroleum and other industries.1.inspection standard: built-in common inspection standard of various industries, direct call, convenient and fast;2.Weld joint diagram: weld shape parameters can be set, and the weld map and the position of the defect in the weld are visually displayed during flaw detection;3.Automatic calibration: automatic calibration function of probe zero and probe angle (K value); automatic measurement function of sound velocity;4.Crest memory: the highest wave of defects is retrieved in real time, and the maximum value of defects is recorded;5.Ф Value calculation: automatic calculation and display of defect equivalent size after the highest wave of defect is detected and located by straight probe forging;6.Defect positioning: real-time display of defect horizontal, depth (vertical) and sound path position; Defect quantification: defect equivalent dB value is displayed in real time;7.Defect Qualitative: Through echo envelope waveform, it is easy to judge by manual experience.8.DAC/AVG: curves are generated automatically, sampling points are not limited, and can be compensated and modified. The curve floats automatically with gain, expands automatically with sound path, and moves automatically with delay. Can display AVG curve of arbitrary aperture;9.AWS D1.1: American Welding Society Standard, which provides a dynamic reflector "defect rating" for all types of AWS weld inspection applications. Manual calculation can be avoided to improve detection efficiency; (optional)10.Crack height measurement: automatically measure and calculate the crack height by using the endpoint diffraction wave;11.Widening inside the door: Enlarging the echo details to facilitate echo analysis; 12.Continuous recording: record waveforms in real time, store and play back;13.Waveform freeze: Freeze the waveform displayed on the screen to facilitate defect analysis;14.Echo coding: display 1~6 echo display areas in different colors, which is convenient for judging the defect position;15.Gain: total gain of 110dB, set 0, 0.1dB, 2dB, 6dB step value, unique automatic gain adjustment and sweep gain function, making flaw detection fast and accurate;16.Gate alarm: door position, door width, door height can be adjusted arbitrarily; B. The gate can choose to set the incoming wave alarm or the lost wave alarm; Beeping sound inside the gate and LED light (LED light alarm is very effective in noisy environment) alarm and close;17.Real-time clock: real-time flaw detection date, time tracking record, and record storage;18.Battery module: high capacity lithium battery module, online and offline charging, convenient for flaw detection personnel.Product DescriptionU610U620U630Working PrincipleUltrasound(pulse-echo/echo-echo)Working Frequency range0.5~20MHzPulse WidthSquare wave width 30~1000ns adjustable, step 0.1nsDetection range0 to 14000(steel longitudinal wave)mmPules displacement-45 to 1000(steel longitudinal wave)mmMaterial sound velocity300~15000m/sDetection methodNegative wave, forward wave, two-way wave, filtering, RF waveGain adjustment0 to 110dB: 0.1/1/2/6 step adjustmentThickness measurement function--Normal mode 0.75-300mm penetrating coating 2-150mmWIFI/HDMI/Digital Filter----Phone connection/HD projection/digital filteringValveoff/ incoming wave / lost waveDAC, AVG functionDAC curve, AVG curveAttenuator errorEvery 12dB±1dBVertical linear error≤3%Horizontal linear error≤0.5%Dynamic range≥30dBFlaw detection margin≥65(2.5Z20N probe)dBFar-field resolution≥26dBElectrical noise level≤10(1~4MHz)%Equivalent input noise＜80x10-9V/√HzPulse repetition frequency20~1000Hz, step 1HzPulse votage25~400V adjustable, step 25VThin plate resolutionAmerican Welding Association AWS D1.1/1.5 calculates steel structure and bridge weld gradesOperating voltage12V(battery, DC)Physical dimension180x130x40mm(heightxwidthxdepth)StorageExpansion TF card, mass storgeCompany ProfileCangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment. Cangzhou Lovely Group Co.,Ltd. insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!Factory WorkshopHot SalesCertificationsCustomer PhotosPacking and ShippingFAQ Q1:Are you a factory or trading company?A:We are a factory specializing in manufacturinf all kinds of tester. Q2:Where is the loading port? A:Qingdao port or tianjin port. Q3:What’s the MOQ of the product?A:Different item has different MOQ.normally one stand is preferred. Q4:What certificates do you have? A:We have ISO 9001. Q5:Do you have an OEM service? A:Yes.We can provide OEM and ODM services as your requirements. Q6:How long is the production cycle after ordering? A:General it is about 7-20 days. Q7:What is the payment method?A:T/T payment is preferred and other payment terms is accepted.
