Chinese Manual Milling Machine X5036 Cheap Knee Type Vertical Milling Machine
| US$5,000.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X5036
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Lifts
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Chinese Manual Milling Machine X5036 Cheap Knee Ty
Distance Between Spindle Nose and Tabl
80-440
Distance Between Spindle Hole
320
Spindle Speed
60-1700
Rotation Angle of End Milling
45
Table Size
1250*360
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459590000
Packaging & Delivery
Package Size
170.00cm * 168.00cm * 188.00cm
Package Gross Weight
2200.000kg
Product Description
Chinese Manual Milling Machine X5036 Cheap Knee Type Vertical Milling MachineProduct Description
X5036 technical parameter:
| Specifications | X5036A | X5036B | X5036C |
| Spindle taper | 7:24 ISO50 | 7:24 ISO50 | 7:24 ISO50 |
| Distance between spindle nose and table (mm) | 80-440 | 70-450 | 70-450 |
| Distance between spindle hole center and column surface | 320 | 360 | 360 |
| Spindle speed (r/min) | 60-1700 (12steps) | 60-1700 (12steps) | 60-1800 (12steps) |
| Rotation angle of end milling head | ±45° | ±45° | ±45° |
| Table size (mm) | 1250×360 | 1500×360 | 1600×360 |
| Table travel (X/Y/Z) (mm) | 600/320/380 | 1000/320/380 | 1300/320/380 |
| Number/width/spacing of T-grooves in worktable (mm) | 3/18/80 | 3/18/80 | 3/18/80 |
| Main motor (kw) | 4 | 4 | 5.5 |
| Power of Maneuverable Feed Motor of Workbench (kw) | 0.75 | 0.75 | 0.75 |
| Power of feed motor for lifting platform (kw) | 1.1 | 1.1 | 1.1 |
| Cooling pump motor power (kw) | 0.09 | 0.09 | 0.09 |
| Cooling pump flow rate (L/min) | 25 | 25 | 25 |
| weight (kg) | 2200 | 2230 | 2600 |
| overall dimension (mm) | 1700×1680×1880 | 2220×1790×1980 | 2520×1890×2080 |

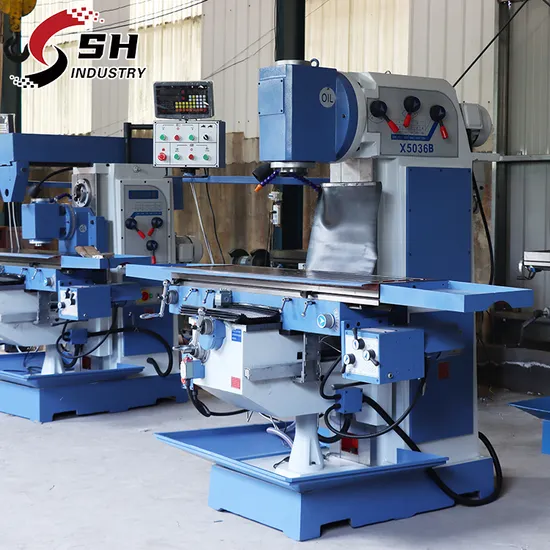

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
