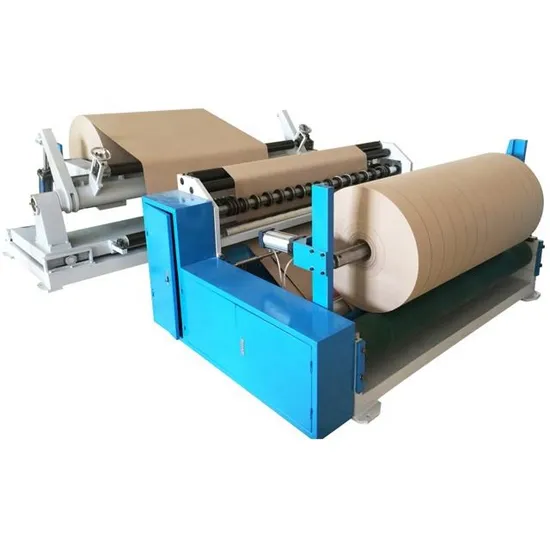

Slitter Rewinder Machine Paper Roll Slitting Rewinding Machine Cffq-200
Basic Info.
Model NO.
CFFQ-200
Condition
New
Processing Type
Paper Slitting and Rewinding Machine
Dimension(L*W*H)
3500*3300*1200mm
Showroom Location
None
Weight
2800kgs
Warranty of Core Components
1.5 Years
Video Outgoing-Inspection
Provided
Applicable Industries
Manufacturing Plant
Marketing Type
Ordinary Product
Core Components
PLC, Motor
Product Type
Paper Core Machine
Voltage
380V / 3phase / 50Hz
After Warranty Service
Video Technical Support, Online Support
Power
15kw
Machinery Test Report
Provided
Transport Package
Seaworthy Packing (Wooden Case / Pallet)
Trademark
Chuangfeng
Origin
Zhejiang, China
Production Capacity
20 Set/Sets Per Month, 200 M/Min
Product Description
Product Description Usage: CFFQ-200 Jumbo Paper Slitting Rewinding Machine is suitable for Kraft paper; Tea paperboard; Bobbin paper; Art paper etc.Features:
1. Double blades (upper blades and down blades) slitting. Cutting edges are more smooth and neat.
2. Adopt shaftless material loading device which can bear 2000kgs weight.
3. Pneumatic loading and unloading system; material paper roll loading and finished rolls unloading to be automatically.
Technical Parameters
| Technical Parameter | Control System | ||
| Material Paper | 60-600gsm | Main Motor | 15kw Wannan |
| Unwind Width | 600-1600mm | Inverter | 18.5KW Delta |
| Unwind Diameter | 1400mm (standard) | Electrical Components | CHNT |
| Rewind Diamter | 1400mm (standard) | Pneumatic Components | Jingwei |
| Minimum Slitting Width | 40mm | Bearing | Haerbin |
| Working Speed | 0-200 meters/min | PLC | Xinjie |
| Speed regulation | By Inverter | Control Panel | Touch Screen |
| Material Loading Device | Shaftless Device | Power Supply | 380V / 3phases / 50Hz |
| Loading Type | Automatically by Hydraulic | | |
| Rewinding Type | Air Inflation Shaft | Configuration | |
| Unloading Type | Automatically by Pneumatic | Inflation Cone | 1 Set (76mm ID) |
| Power Supply | 380V/3Phase/50Hz (can be customized) | Lifting Air Cylinder | 1 Set |
| Discharging Air Cylinder | 1 Set | ||
| Size | Material Shafts Braking Device | 1 Set | |
| Mainframe (two parts) | 3000*1700*1100mm (Rewinding side) | ||
| Blades | 20 Sets (standard) | ||
| 3300*1200*1200mm (Unwinding side) | Operating Box | 1 Set | |
| Curved Roll | Have | ||
| Weight | 2800kgs | Meter Counter | Optional |
| Enclosed Spare Parts | Automatic Correcting Unit | Optional | |
| Useful Tool | 1 Set | | |
Hydraulic Lifting System
Shaftless Loading System by Inflation Cone;
Slitting& Rewinding Side. a. Multi Blades Slitting -- minimum slitting width is 40mm.
b. Rewinding part adopted with air inflatable shaft; finished rolls can be removed more easier.
c. Rewinding side has curved roller and finished rolls can be seperated automatically
Finished Products
Company Information
Certifications
Packaging & Shipping
