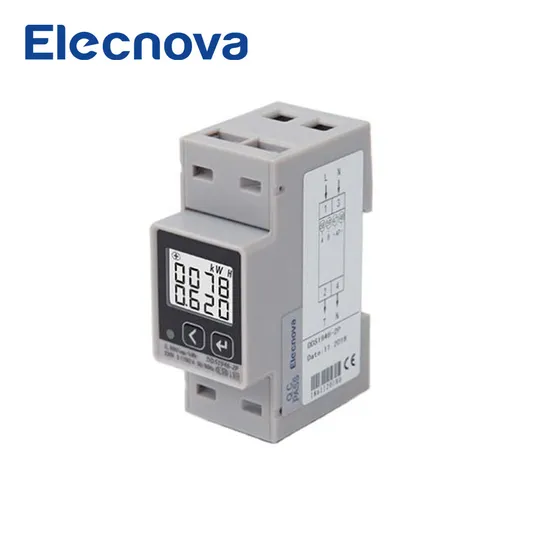

CE Approval DIN-Rail Mounted 1p2w Direct Input EV Home Charger Energy Meter
Basic Info.
Model NO.
DDS1946-2P
Installation
Direct Connected
Usage
Multi-Functional Energy Meter
Electric Equipment
Single-phase
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Energy Meter
Certification
ISO, CE
Customized
Customized
Accuracy Class
0.5s
Frequency
45-65Hz
Rated Current
AC 5(100)a
Communication
RS-485
IP Degree
Front IP51
Output Voltage
230V
Rtc Error
≤0.5s/Day
Energy Pulse
1 Output, Pulse Width(80±20%) Ms
Consumption
<2va
Voltage Range
0.8un~1.2un
Specification
90*36mm
Trademark
ELECNOVA
Origin
China
HS Code
9030899090
Production Capacity
20000PCS/Per Month
Packaging & Delivery
Package Size
9.00cm * 6.30cm * 3.60cm
Package Gross Weight
0.500kg
Product Description
Product Name: CE Approval DIN-Rail Mounted 1p2w Direct Input EV Home Charger Energy MeterProduct DescriptionDDS1946-2P din rail mounted AC Digital single phase smart electricity meter are designed and produced according to user's real electricity consumption situation by adopting advanced energy measurement IC and using digital sampling processing and SMT technologies. They adopt modularity structure with the features such as small volume, convenient installation and reliable working.
Technical Specifications
| DDS1946-1PDDSF1946-1P | DDS1946-2PDDSF1946-2P | DDS1946DDSF1946 | DSS1946DSSF1946 | DTS1946DTSF1946 | ||
| Normal Voltage | 230V | 230V | 230V | 3*400V | 3*230/400V | |
Current | Direct input | 5(40)A | 5(100)A | 5(100)A | 5(100)A | 5(100)A |
| Via CT input | - | - | 1.5(6)A | 1.5(6)A | 1.5(6)A | |
| Accuracy | Class 1(Optional:Class 0.5S) | |||||
| Frequency | 45Hz~65Hz | |||||
| Voltage Range | 0.8Un~1.2Un | |||||
Start Current | Direct input | 0.004Ib | ||||
| Via CT input | 0.002In | |||||
| Consumption | <2VA | |||||
| Energy Pulse | 1 output, pulse width (80±20%) ms | |||||
| RTC Error | ≤0.5s/day | |||||
| Communication | RS485, Modbus-RTU, 2-wire, up to 9600bps | |||||
| IP Degree | Front: IP51 | |||||
| Operating Temperature | -10ºC ~ 55ºC | |||||
| Storage Temperature | -25ºC ~ 70ºC | |||||
| Relative Humidity | ≤93% | |||||
| Certificate | CE ISO9001,MID | |||||
Application
Energy managementSub-item meteringPower monitoringRemote monitoring of electrical equipmentDin rail mounted meter
Company Profile
FAQQ: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
