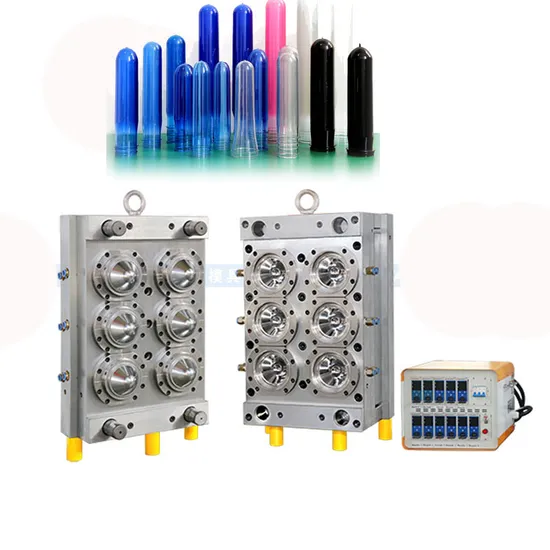

Pet Injection Preform Bottle Mould Plastic Water Bottles Mold Price

Product Description

Product Description
Technical advantages of shenbao mold hot runner system:
1. Reduce the loss and cost of raw materials;
2. Reduce the recycling, sorting, crushing, drying and storage of waste, which can reduce the number of pulverizers, save labor, reduce energy consumption, and save production space;
3. Avoid the impact of using recycled materials on reducing the quality of parts;
4. Ensure the consistency of injection molded parts and improve the precision of plastic parts;
5. Increase the injection volume of the part and improve the compressibility of the plastic melt;
6. Strengthen the function of injection and improve the injection molding process;
7. Reduce the required injection and holding time;
8. Reduce the required clamping force;
9. Shorten the mold opening stroke in the injection operation cycle and eliminate the time spent taking out the nozzle material;
10. Shorten the injection cycle, strengthen automation and improve production efficiency.
The embodiment of the key performance elements of the hot runner system:
1. Precisely control the temperature of melted plastic to eliminate material degradation;
2. Balanced runner design, uniform filling of parts cavity;
3. Appropriate specifications and sizes of hot nozzles ensure the smooth flow of the melt and the full filling of the cavity;
4. The gate structure and size are correct to ensure that the cavity is fully filled and the needle valve gate is closed in time. Thereby reducing casting and shortening injection molding cycle;
5. There is no dead zone in the flow channel, which ensures fast color change and prevents material degradation;
6. Minimize pressure loss;
Product Parameters

Cavity	Bottle Preform		Mold			Mold Weight	Time(sec)
	Weight	Neck (mm)	Height (mm)	Width (mm)	Thick (mm)
2(1*2)	720	55	470	300	608	330	125
4(2*2)	720	55	490	480	730	440	130
8(2*4)	16	28	450	350	410	475	18
12 (2*6)	16	28	600	350	415	625	18
16(2*8)	21	28	730	380	445	690	22
24(3*8)	28	28	770	460	457	1070	28
32(4*8)	36	28	810	590	515	1590	28
48 (4*12)	36	28	1070	590	535	2286	30

Key Parts

Valve pin	Heat insulation cap	Heat ring	Copper Nozzle
Japan PUNCH	America DUPONT	Germany HOTSET	American PCT

Detailed Photos

Use For

Our Service

Installation serviceWhen you finish the Preparation conditions, our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee until they can operate the machine well. The sample service1. We can send you the video of the running machine. 2. You are welcome to come to visit our factory, and see the machine running. Customized service1. We can design the machines according your requirements(materil, power, filling type, the kinds of the bottles, and so on), at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years. After-sales service1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly2. When you finish the Preparation conditions, our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee until they can operate the machine well. 3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time. 4. We provide one year warranty5. Well-trained & experienced staff are to answer all your inquiries in English and Chinese6.24 hours for engineer response (all services part 5days in customer hand by Intl' courier). 7.12 Months guarantee and life-long technical support. 8. Your business relationship with us will be confidential to any third party. 9. Good after-sale service offered, please get back to us if you got any questions. Quality Control
We have the single quality department, that make sure the material of the raw materials is good, and ensure the machine running smoothly. After all production, we will connect all the machines and keep running the full production line for at least 24 hours to ensure the stable running in customers' factory.
If you want to know more information about the product, You can send an inquiry, we will solve any of your problems and send you running vedio.
Related Products

Exhibition
COMPANY PROFILE

PACKAGING


FAQ Q: How long is your delivery time?
A: Generally it is 20-30days,if complete production line it is 45-60 days.

Q: Do you have any certification?
A: SGS,ISO,CE

Q: What is your terms of payment ?
A: 30% by T/T as deposit advanced,70% balance after inspection in our factory and before shipment.

Q:What is your after sales service?
A:One years warranty,Long-lift technical support. 20 years experience engineers team,guarantee to check each spare part's precision during installation
