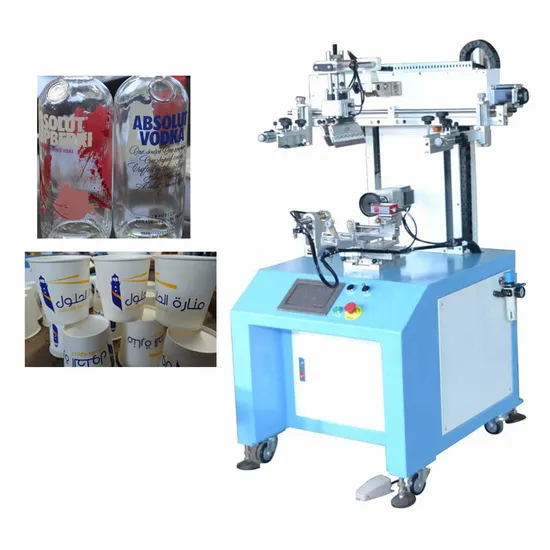

PLC Control Cylindrical Screen Printer with Automatic Registration Bottle Screen Printing Machine

Product Description

PLC Servo Cylinder Screen Printing Machine With Color Sensor For Glass Plastic Bottle Jar Cup Cans Tubes Containers
This machine adopted 2sets ABB Swiss servo, German Leuze color sensor and Japan Hitachi PLC system. One servo is for Screen movement, another servo is for Fixture rotation. And the German Leuze color sensor is used to recognized the print position.
It does not require any positioning point or certain gears when printing multi-colors cups, bottles, cans, glasses,tubes ,jars and etc.
Wide range of uses:
Suitable for precise printing substrates in Cylindrical, forms which with smooth curve surface and made of various materials such as metal, plastic, ceramic, glass, wood etc...Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, oil-filtershell ,cups ,jars ,tubes,cans and etc...
Cylinder screen printers can print one color at one time. Once replacing frame and ink, they can print multi-colors.
Parameter:
1. Model number: LC-PA-400ES
2. 2 set ABB Swiss SERVO Motor & PLC .
3. Germany LEUZE Brand Color Sensor
4. Product appearance: Round.
5. (Round)Max. Printing diameter: Φ120mm
6. (Round)Max printing arc length: L: 370mm
7. Printing Speed: 1500 PC/H
8. Machine size:98*88*139cm
9. Package dimensions:103*100*148cm
10. Machine/ Weight: 270KG
11. Package weight:300KG
12. Air pressure: 0.5Mpa
13. Voltage power:220V/ 50HZ
Machine detail pictures:

Printing samples
