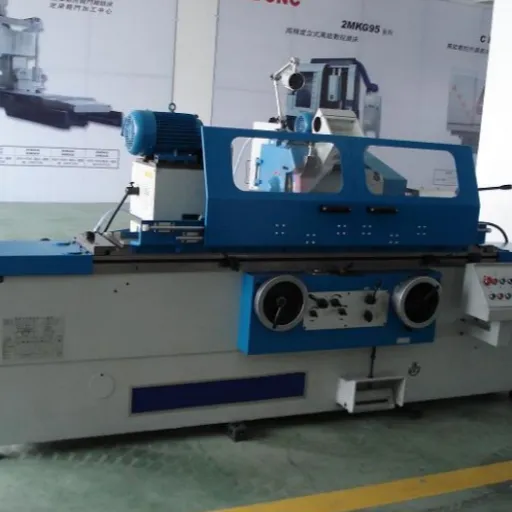

Cg20 Cylindrical Grinder Universal Cylindrical Grinding Machine Supplier

Product Description

Product Description
CG series cylindrical surface grinder is suitable for grinding outer surface of cylinder and taper.
UCG series cylindrical surface grinder is suitable for grinding outer/inner surface of cylinder and taper.
The longitudinal movement of the worktable is driven by hydraulic or by handwheel.
The worktable can to a certain degree so as to be suitable forgrinding taper.
The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed and ropid feed. It can also do rough and fine feed through handwheel.
The worktable and wheelhead guide way of the CG50, UCG50 series adopt hydrostatic lubrication, its movement onlow speed is smooth.
The spindle of CG50 and UCG50 series is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
The wheelhead of CG50 adopts double-speed motor and its speed can be changed by changing the position of belt. The wheelhead of the universal type (UCG50) adopts inverter motor to realize stepless speed changing. The wheelhead spindle of the universal type (UCG50) adopts sliding bearing structure.
The clearance of the realize stepless speed changing. The wheelhead spindle of the universal for the grinding Use center of chuck The workhead of the universal type can be rotate to any position within its conterclock direction 90° so it can be suitable for grinding inner or Outer surface of taper.
The UCG series universal cylindrical grinder has internal grinding apparatus, internal grinding spindle is supported by precise rollbearing.
The worhead spindle, wheelhead spindle, internal grinding spindle, coolent pump, hydrodynamic and hydrostatic oilpump are driven by separatemotors.
Each moving parts of the machine has elctric, hydraulic and mechanic interlock structurethe machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
The wheel dresser can be assembled on the worktable surface or on the tailstock.

Description\Model		Unit	13701-1 CG20
General capacity
Distance between centers		mm	500, 750
Center height		mm	135
Dia. Ground (O.D)		mm	5-200
Dia. Ground (I.D)		mm	-
Max. length ground (O.D)		mm	500,750
Max. length ground (I.D)		mm	-
Max. weight of work piece		kg	-
Workhead
Swiveling angle		°	-
Center taper (MT)		MT	4
Spindle speed		r/min	50Hz: 25-380
Workhead
Wheel spindle speed		rpm	1335
Wheelhead rapid travel		mm	50
Max. travel		mm	205
Swiveling angle		°
Hand wheel - turning wheel frame movement		mm	rough: 2 fine: 0.5
Hand wheel - grid wheel frame movement		mm	rough: 0.01 fine: 0.0025
Wheel size		mm	500 x 50 x 203
Grinding wheel speed		mm	35
Internal grinding device
Spindle speed		r/min	-
Wheel size		mm	3-
Table
Hand feed per. rev		mm	6
Max. swiveling angle	clockwise	°	3°
	anticlockwise	°	9° (750), 8° (500)
Worktable longitudinal moving speed range		m/min	0.1-4
Tailstock
Center tape (MT)		MT	4
Quill travel		mm	30
Motor
Wheelhead motor power		Kw	5.5
Intemal grinding		Kw
Workhead motor power		Kw	0.75
Machine
Gross weight		t	4(500) 4.2(750)
Packing dimension		cm	260x206x 205(500)
			300x206x 205(750)
Old model			MW1320
