Reliable Heavy Duty Lifting Stage for Sturdy Industrial Performance

Product Description

Product Description
1,1. Perfectly designed for applications where it's crucial to lower the lifting platform to the absolute minimum height while supporting a large stroke and heavy loads effortlessly.
2. Achieve a maximum lifting speed of 0.3 meters per second, ensuring swift and efficient operations.
3. Experience a smooth ascent with consistent speed, delivering reliability in every lift.
4. Benefit from precise positioning coupled with remarkable synchronization accuracy, setting a high standard in performance.
5. Driven by either electronic or hydraulic motors, this system is designed to be maintenance-free throughout its lifecycle.
6. Offers straightforward installation and model selection, ensuring low maintenance costs for maximum convenience.
7. Prioritizes safety, operates pollution-free, and minimizes noise, creating an eco-friendly and serene working environment.

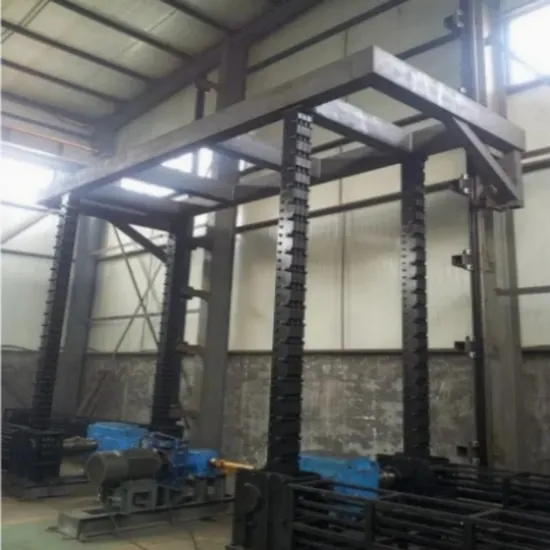

2,The Chain Link Transmission Lift operates by transforming horizontally moving chain links within the storage box into vertical movement. These chain links then form sturdy vertical columns capable of bearing vertical loads to achieve seamless vertical lifting.
Detailed Photos
Product Parameters

DYN Load-Pitch of Chain Link
model		07A	11A	15A	19A	23A	27A	31A		35A	39A	47A	53A	63A	71A	77A
trip (m)		DYN Load (kN)
0		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.30		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.50		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.80		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
1.00		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
1.20		4.3	12	25	39	57	78	98		134	173	222	280	360	450	650
1.40		3	9	25	39	57	78	98		134	173	222	280	360	450	650
1.60			7	25	39	57	78	98		134	173	222	280	360	450	650
2.00			4	17	39	57	78	98		134	173	222	280	360	450	650
2.50				11	26	57	78	98		134	173	222	280	360	450	650
3.00					18	55	78	98		134	173	222	280	360	450	650
3.50						40	78	98		134	173	222	280	360	450	650
4.00						30	78	98		134	173	222	280	360	450	650
4.50						23	63	98		134	173	222	280	360	450	650
5.00							50	82		134	173	222	280	360	450	650
5.50							40	67		134	173	222	280	360	450	650
6.00							33	55		118	173	222	280	360	450	650
6.50								46		99	159	222	280	360	450	650
7.00								38		84	136	202	280	360	450	650
7.50										72	117	173	280	360	450	650
8.00										62	101	150	280	360	450	650
8.50										53	88	131	258	360	450	650
9.00											76	115	226	360	450	650
9.50												99	200	360	450	650
10.00												80	178	330	450	650
10.50													159	295	450	650
11.00													142	265	450	650
11.50													127	240	450	650
12.00														220	450	620
12.50														195	420	580
13.00														180	390	540
13.50														165	360	500
14.00															330	460
14.50															300	420
15.00															280	380
16.00															260	345
	Please call us for confirmation when selecting model of this color parameters.								The color or above parameters can be selected according to the design.

Certifications
Packaging & Shipping
Company Profile
Project:SHANGHAI EAST CHINA NORMAL UNIVERSITY A comprehensive suite comprising one set of double-deck stage steel structure fence top, an impressive array of 45 lifting booms, 9 synchronous receivers, a set of movable counters, 4 sets of lifting stages, and 2 sets of
orchestra lifting mechanisms, complemented by 1 set of lifting railings, a robust steel fire curtain, and a total of 45 lifting booms..
Project:Shanghai Wild Animal Park Featuring a meticulously designed double-deck stage steel structure fence top, an extensive lineup of 45 lifting booms, 9 synchronous receivers, a set of movable counters, 4 sets of lifting stages, and 2 sets of lifting orches
tras, alongside 1 set of lifting railings, a resilient steel fire curtain, and 45 lifting booms, this project exemplifies superior engineering.
Project:Hengdian Film and Television Qinhuai Eight Beauties Theater This project boasts a stage steel structure fence top with 1 set, 46 stage booms, 5 front single-point stages, 1 steel fire curtain, 1 lifting orchestra, 1 orchestra lifting railing, and platform solutions featuring
2 platforms and 2 platform compensation platforms, all expertly configured for optimal performance.
