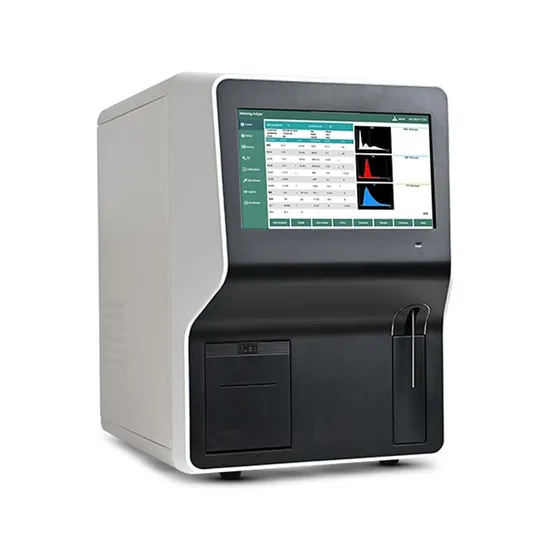

Yste320A Lab Instrument Blood Analyzer 3 Part Automatic Hematology Analyzer
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
YSTE320A
Customized
Non-Customized
Structure
Portable
Certification
ISO
Application
Lab
Type
Blood Test Analyzer
Parameter
3-Part Differentiation of Wbc
Large Storage Capacity
up to 10,000 Samples
Display
10.4 Inch True Color TFT LCD & Touch Screen
Power Supply
220V ± 22 VAC, 50 ± 1 Hz
Report
Built-in Thermal Printer
Measuring Channels
Double Channel for Counting
Counting Modes
Whole Blood, Pre-Diluted Blood
Dimensions
368mm X 448mm X 475mm
Weight
16kgs
Parameters & Histograms
21 Parameters and 3 Histograms
Venous Blood
6UL
Voltage
220V, 50Hz
Use
Laboratory
Pre-Diluted Blood
20UL
Function
3-Part Analyzer
Transport Package
Wooden Case
Specification
ISO certificate
Trademark
YSENMED
Origin
China
Production Capacity
1, 000sets /Year
Product Description
YSTE320A Lab Instrument Blood Analyzer 3 Part Automatic Hematology Analyzer1. Highlights
l User-friendly interface
True color TFT LCD & touch screen, more visible
Minimize the number of interface layers, pop-up soft keyboard, easy to operate
lInternationalization support
Possible choice of parameter units. Several languages available, can switch language online
2. Product Specifications
l Measuring Channels
Double channel for counting
l Counting Modes
Whole Blood, Pre-diluted Blood
l Sample Volume
Venous Blood: 6µL
Pre-diluted Blood: 20µL
l Parameters & Histograms
21 parameters and 3 histograms:
l Display & Touch Screen
10.4 inch true color TFT LCD and touch screen
lQuality Control System
Include 9 QC files, automatically draw quality control chart, provide the average, SD, CV
l Power
220V, 50Hz Input power: ≤150VA
l Operating Environment
ü Environment Temperature: 10 ºC~30ºC
ü Relative Humidity: ≤70%
ü Atmospheric Pressure: 70.0kPa ~106.0kPa
l Dimensions
58*48*60
l Weight
16Kg
