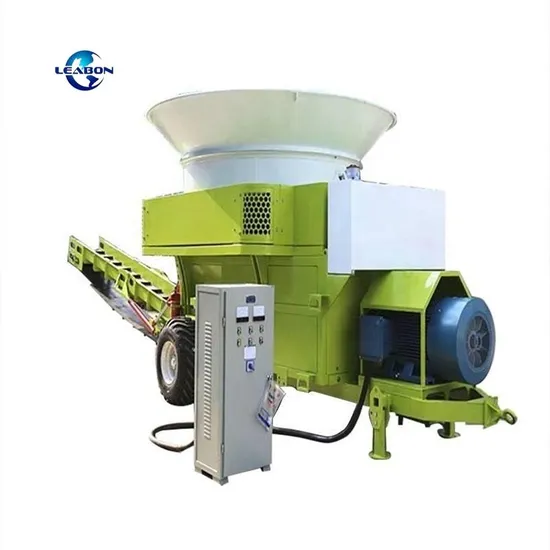

Round Grass Hay Bale Crusher Alfalfa Straw Bales Shredder Machine
| US$6,999.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
9FC-80
Processing Object
Forage, Straw
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Condition
New
Warranty
1 Year(Expect Spare Parts )
Model
9FC-130 Straw Bales Broker
Power
75kw
Capacity
5-7t/H
Crushing Effect
3-8cm
Top Diameter
2600mm
Bottom Diameter
2200mm
Number of Blades
24 PCS
Discharge Method
Bottom Discharge
Total Weight
2800kg
Dimensions
4*2.6*2.5m
Color
Customizable
Matching Power
22-90kw
Crushing Efficiency
2-10t/H
Diameter
1800-2800
Key Words
Bale Crusher
Transport Package
Standard Export Pacakge
Specification
CE
Trademark
LEABON
Origin
Henan, China
HS Code
8479820090
Production Capacity
50000pecies/Year
Packaging & Delivery
Package Size
360.00cm * 220.00cm * 230.00cm
Package Gross Weight
2300.000kg
Product Description
Round Grass Hay bale Crusher Alfalfa Straw Bales Shredder MachineProduct Description
Vertical Type Straw Baler
Straw Bales Shredder is widely used in cutting straw, peanut vine, sweet potato vine, corn stalk, cotton stalk, grass, seaweed and all kinds of tree branches, essential equipment for large and medium farm, biomass power station, biogas digester, and biomass fuels plant and so on.
It can handle all kinds of bales with different thicknesses, different lengths, and different moisture contents, with a wide range of moisture and adaptability, and convenient disassembly and transportation.
Product Parameters
| Model | 9FC-80 | 9FC-100 | 9FC-130 | 9FC-150 |
| Power | 22-30kw | 45-55kw | 75kw | 90kw |
| Capacity | 2-3t/h | 3-5t/h | 5-7t/h | 8-10t/h |
| Crushing effect | 3-8cm | 3-8cm | 3-8cm | 3-8cm |
| Top diameter | 1800mm | 2200mm | 2600mnm | 2800mm |
| Bottom diameter | 1500mm | 1800mm | 2200mm | 2400mm |
| Number of blades | 24pcs | 24pcs | 24 pcs | 24 pcs |
| Discharge method | Spray | Spray type / bottom discharge | Bottom discharge | Bottom discharge |
| Total Weight | 1700kg | 2300kg | 2800kg | 4300kg |
| Dimensions | 3.2*1.8*2m | 3.6*2.2*2.3m | 4*2.6*2.5m | 4.7*2.8*2.8m |
Belt Grass Bale Shredder
Product parameter
| Type | LBF-1000 |
| Rotor hammer mill | Fly hammer: 64pcs, wear-resisting alloy material Fly hammer shaft: 8pcs, strength alloy steel Bearing: SKF Drive: PTO |
| Combined power | Tractor drive: 90-180HP Motor drive: 90-150kw PTO speed: 1000/r-min |
| Screen mesh | Thickness: 6mm;Diameter of hole: 6mm-125mm |
| Drum/Tub | thickness: 3mm Outside width: 3.2m Inside Dia: 2.3m; Depth: 0.8m |
| Screw pusher | Type: bi-column symmetric; Length: 1150mm |
| discharging conveyor | Type: folding hydraulic drive Maximum lifting height: 4.19 m Belt: Rubber |
| Transport size | 6500x3200x3200 mm ; 5300kg |
Structural composition
Raw Materials&Final Product
Final Products
