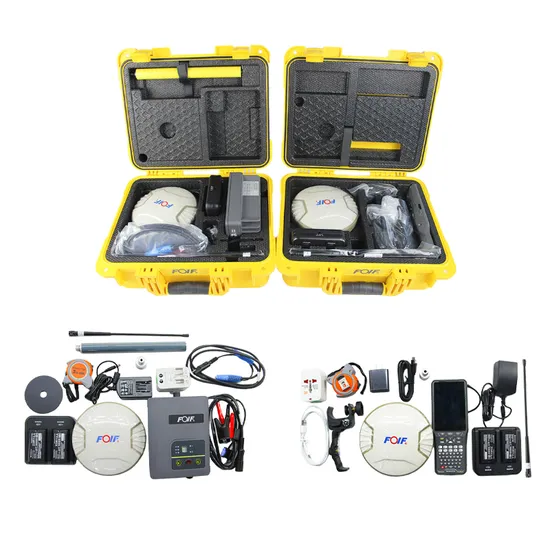

Foif A90 GPS Handheld Rtk Receiver GPS Rtk with Google Function&Upgraded Surpad Software for Land Survey International Version Gnss Rtk Base and Rover Rtk
Basic Info.
Model NO.
A90
Operating Principle
Code Related Type
Port Number
Multichannel
Chip
Mstar
Accuracy
1mm
Vertical Lines
1
Horizontal Line
1
After-sales Service
3 Years
Warranty
3 Years
Transport Package
Hard Plastic Case
Trademark
FOIF
Origin
China
HS Code
8526919090
Production Capacity
1000PCS/Month
Packaging & Delivery
Package Size
55.00cm * 45.00cm * 35.00cm
Package Gross Weight
20.000kg
Product Description
| Model | A90 | |
| GNSS | Channels | 1408 |
| Signals | BDS: B1, B2, B3 | |
| GPS: L1CA, L1P. L1C, L2P, L2C, L5 | ||
| GLOASS: G1,G2, P1, P2 | ||
| GALILEO: E1BC, E5a. E5b | ||
| QZSS: L1CA. L2C. L5, L1C | ||
| SBAS: L1CA, L5; | ||
| L-Band | ||
| Accuracy | Static | H: 2.5 mm±1ppm , V: 5 mm±1ppm |
| RTK | H: 8 mm±1ppm, V:15 mm±1ppm | |
| DGNSS | <0.5m | |
| ATLAS | 8cm | |
| System | Initialization Time | 8s |
| Initialization Reliable | 99.90% | |
| Operating System | Linux | |
| Merrory | 8GB, support expanable MisroSD | |
| Wifi | 802.11 b/g/n | |
| Blue Tooth | V2.1+EDR/V4.1Dual,Class2 | |
| E-Bubble | support | |
| Tilt Survey | IMU Tilt Survey 60°,Fusion Positioning/400Hz refresh rate | |
| Datalink | Audio | support TTS audio broadcast |
| UHF | Tx/Rx Internal Radio, 1W/2W adjustable, radio support 410-470Mhz | |
| Protocol | support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target | |
| Network | 4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS) | |
| Physical | Interface | 1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232) |
| Button | 1 Power Button | |
| Indication Light | 4 Indication Lights | |
| Size | Φ156mm * H 76mm | |
| Weight | 1.2kg | |
| Power supply | Battery capacity | 7.2V, 24.5Wh(standard two batteries) |
| battery Life Timer | Static Survey: 15 hours, Rover RTK survey: 12h | |
| External power source | DC 9-18V, with overvoltage protection | |
| Environment | Work Temporature | -35ºC ~ +65ºC |
| Storage Temporature | -55ºC ~ +80ºC | |
| waterproof&dustproof | IP68 | |
| Humidity | 100% anti-condensation | |
