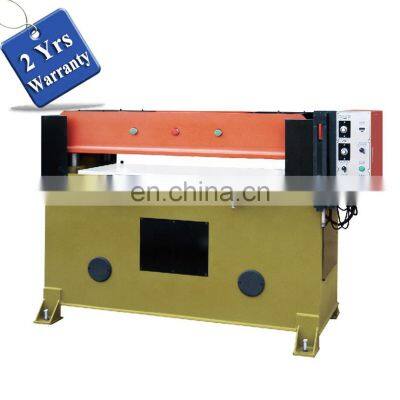

MQ40 40 tons 4 Column Precise Hydraulic Big Envelope Kraft Paper Die Cutting Press Machine

Product Description

Product Description
MQ40 40 tons 4 Column Precise Hydraulic Big Envelope Kraft Paper Die Cutting Press Machine
Videos
Video demonstration only for reference
Video 01 : /watch?v=o3Za8y1R9_M
Video 02 : /watch?v=La42GIEoA8M
Product Description
Description:
Equipped with strong hydraulic driven power, It can be used to cut pile of paper sheets in different weights. It features high efficiency and reliable performance for long time use.
Features:
1,The machine is widely applicable to cut different materials like paper, carton, rubber and leather etc.
2,Double oil cylinder and precise double-crank connecting rod balancing mechanism are adopted to ensure the even cutting depth at each cutting position.
3,With special setting mechanism, the stroke length is simple and accurate to be adjusted.
4,Automatic central oil supply lubricating system brings a long service life of machine.
Parameter:

Maximum Cutting Force	249KN(30T)	392KN(40T)	490KN(50T)	588KN(60T)	784KN(80T)	980KN(100T)
Tension distance(mm)	50-200	50-200	50-200	50-200	50-200	50-200
Cutting area(mm)	1250×530	1250×630	1250×730	1250×830	1250×930	1250×930
Main motor power(kw)	2.2	3	4	4	5.5	7.5
Weight (approx)(kg)	1600	1800	2300	2500	3100	3600

Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min print size in mm?
B: Material thickness and unwinding width
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
