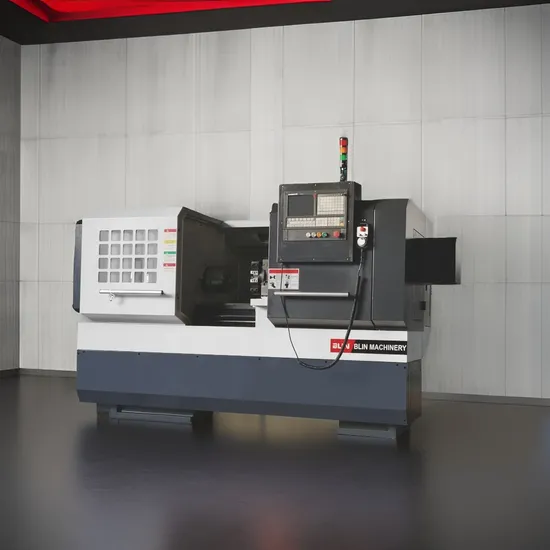

Gear Spindle 350mm Swing Flat Bed CNC Metal Lathe
| US$12,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-CK6136/6140
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Gang Tool
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Guideway Width
312mm
Max. Swing Dia. Over Bed
360/400mm
Max. Workpiece Length
750/1000mm
Spindle Speed
1600rpm
Spindle Bore
52mm
Chuck Size
8′′
Tool Post
Vertical 4/Horizontal 6, 8station Tool Turret
Spindle Motor
5.5kw
Transport Package
Wooden Case
Specification
360/400*750/1000mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480sets/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
- Guideway width 312mm, suitable for light process
- Can choose Independent spindle or 2 class gear spindle
- Bed casted by China top quality compound resin sand cast iron
- Guideway hardened by ultrasonic frequency, good precision keeping
- Aging treatment,has good vibration absorption and rigidity
- Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
- Spindle use high precision bearing, Germany KLUBER lipid
- High precision ball screw, connected with motor directly
Details:
| Item | Specification | Unit | BL-CK6136 | BL-CK6140 |
| Capacity | Guideway width | mm | 312 | |
| Max. swing dia. over bed | mm | Φ360 | Φ400 | |
| Max. swing dia. over slide | mm | Φ200 | Φ240 | |
| Max. workpiece length | mm | 750/1000 | ||
| Spindle | Spindle bore | mm | Φ52 | |
| Spindle taper | / | MT6# | ||
| Spindle speed | rpm | Independent spindle:100~1600; 2 class gears:25~1600(66~660,65~1600) 2 class gears:100~3000(100~1047,290~3000) | ||
| Spindle head type | C6 | |||
| Chuck size | / | 8'' | ||
| Spindle motor | kw | 5.5 | ||
| X/Z axes | X axes travel | mm | 210 | |
| Z axes travel | mm | 600/850 | ||
| X/Z axes ball screw O.D. | mm | 20/40 | ||
| X/Z axes rapid rate | m/min | 4/6 | ||
| X/Z axes positioning accuracy | mm | ±0.015 | ||
| X/Z axes repositioning accuracy | mm | ±0.006 | ||
| Tool post | Tool post | / | Vertical 4T/Horizontal 6,8T | |
| Toolshank size | mm | 20×20 | ||
| Tailstock | Tailstock quill travel | mm | 100 | |
| Tailstock quill dia. | Φ60 | |||
| Tailstock quill taper | / | MT4# | ||
| Accuracy | Turning accuracy | / | IT6-7 | |
| Turning roughness | μm | Ra1.6 | ||
| Turning roundness | mm | 0.005 | ||
| Turning flatness | mm | 0.025/300 | ||
| Others | Overall size | mm | 2150/2450×1350×1700 | |
| Weight | Kg | 1300/1400 | 1600/1700 | |
Main parts list:
| Item | Brand |
| Bearing | CHINA top-HRB |
| Ball screw | CHINA top |
| Spindle | Own-made |
| Hydraulic parts | TAIWAN |
| Electricity parts | FRANCE-SCHNEIDER |
Standard configuration:
-GSK controller
-Manual chuck
-4 station tool post
-Manual tailstock
Optional configuration:
- SIEMENS 808D ADVANCED/FANUC 0I TF controller
- Hydraulic chuck
- 6/8 station tool turret
- Hydraulic tailstock
